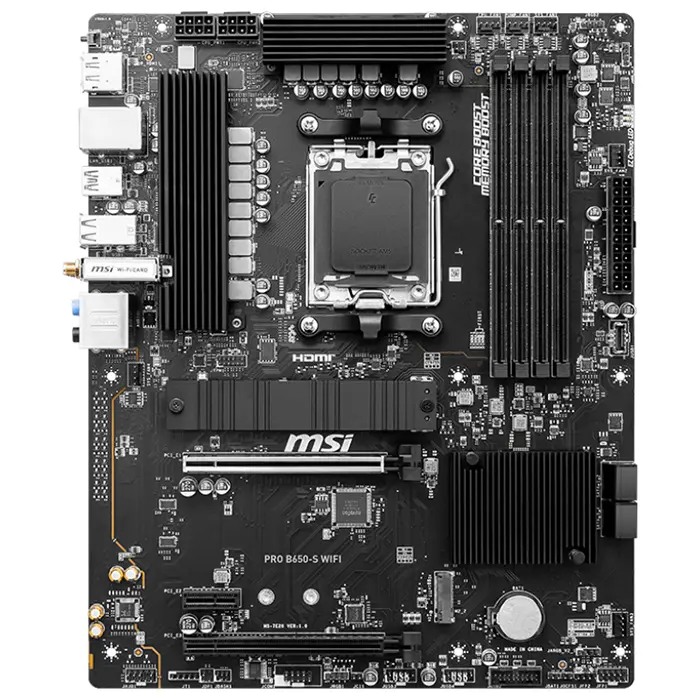

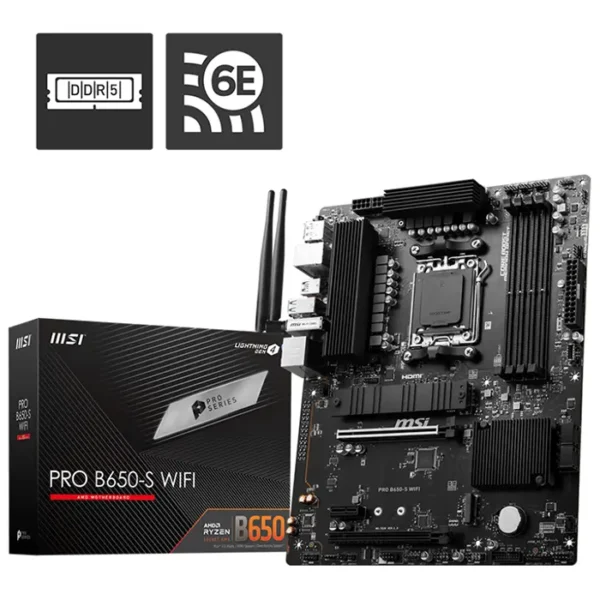

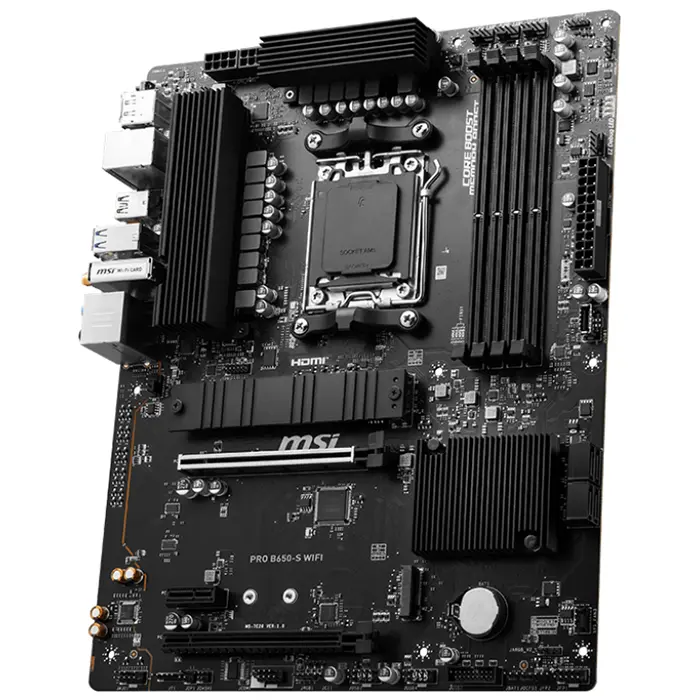

MSI PRO B650-S WiFi Motherboard

Brands:
SKU: MSI-PRO-B650-S-WIFI Categories: , ,
Sale!

₹15,475.00

Availability: In Stock

Only 3 left in stock

SKU: MSI-PRO-B650-S-WIFI Categories: , ,

Description

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

12+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 power design. Combining dual power connectors and exclusive Core Boost technology, PRO B650-S WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B650-P WIFI is ready to deliver the world class memory performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

Additional information

Processor

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset

AMD B650 Chipset
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID

Supports RAID 0 and RAID 1 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN

Realtek® 8125BG 2.5G LAN
Wireless & Bluetooth

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O Headers

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

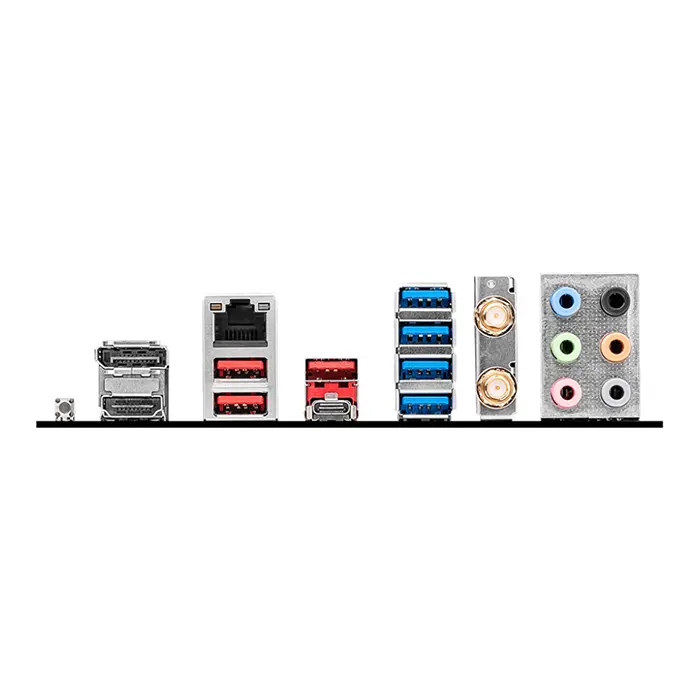

Back Panel Ports

DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2×2 20Gbps (Type-C)
Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor

Warranty

3 Years
