| Essentials |
Product Collection : 13th Generation Intel® Core™ i9 Processors
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop

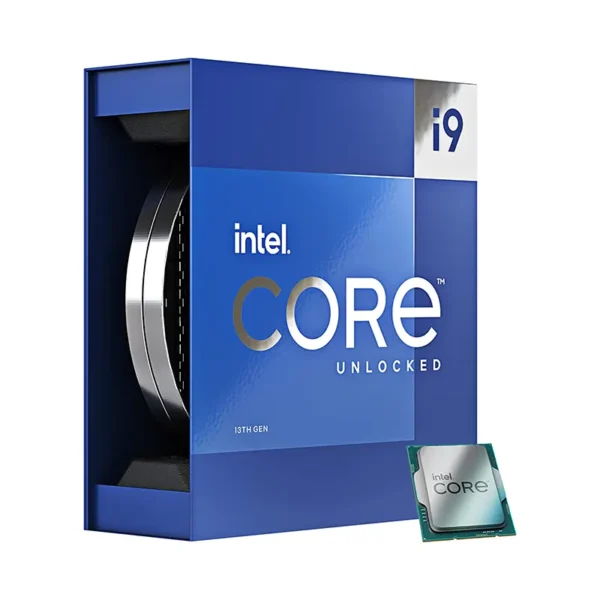

Processor Number : i9-13900K
Lithography: Intel 7
|
| CPU Specifications |
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
Total Threads : 32
Max Turbo Frequency : 5.80 GHz
Intel® Thermal Velocity Boost Frequency : 5.80 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.70 GHz
Performance-core Max Turbo Frequency : 5.40 GHz
Efficient-core Max Turbo Frequency : 4.30 GHz
Performance-core Base Frequency : 3.00 GHz
Efficient-core Base Frequency : 2.20 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 32 MB
Processor Base Power : 125 W
Maximum Turbo Power : 253 W
|
| Memory Specifications |
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes
|
| Graphics Specification |
Processor Graphics : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.65 GHz
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
|
| Expansion Options |
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes : 20
|
| Package Specifications |
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
TJUNCTION : 100°C
|
| Warranty |
3 Years
|
