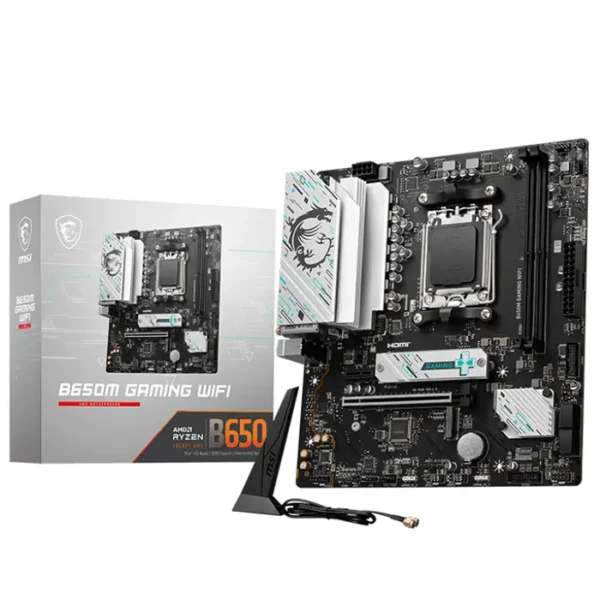

MSI B650M Gaming WiFi Motherboard

Brands:
SKU: MSI-B650M-GAMING-WIFI Categories: , ,

11,495.00

Availability: In Stock

Only 1 left in stock

SKU: MSI-B650M-GAMING-WIFI Categories: , ,

Description

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

SOLID PIN DESIGN

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

ANTI-CORROSIVE STAINLESS STEEL IO SHIELD

Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.

OVER CURRENT PROTECTION

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI’s dedication to producing motherboards that prioritize durability and stability.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

FAST AND FUTURE-READY STORAGE

MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.a

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver the world class memory performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

Additional information

Processor

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

Chipset

AMD B650 Chipset

Memory

2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 3.2 Gen1 Type A (Rear)
1x USB 3.2 Gen1 Type C (Rear)
4x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Wireless & Bluetooth

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Internal I/O Headers

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports

Back Panel Ports

DisplayPort
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

Warranty

3 Years
