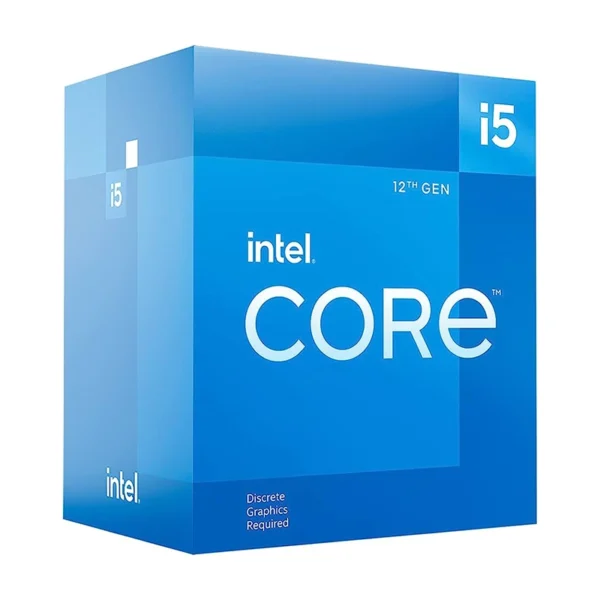

Intel Core i5-12600K Unlocked Desktop Processor With Graphics

Brands:
SKU: CORE-I5-12600K-BOX Categories: , , Tag:

23,875.00

Availability: Out of Stock

Out of stock

SKU: CORE-I5-12600K-BOX Categories: , , Tag:

Description

  • Intel® Core® i5 Deca-core (10 Core) 3.70 GHz processor offers hyper-threading architecture that delivers high performance for demanding applications with improved onboard graphics and turbo boost.
  • The Socket LGA-1700 socket allows processor to be placed on the PCB without soldering.
  • 16 MB of L3 cache rapidly retrieves the most used data available to improve system performance.
  • Intel 7 Architecture enables improved performance per watt and micro architecture makes it power-efficient.
  • Built-in Intel UHD Graphics controller for great graphics and visual quality.

Additional information

Essentials

Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alderlake Lake
Vertical Segment : Desktop
Processor Number : i5-12600K
Lithography: Intel 7

CPU Specifications

Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.90 GHz
Performance-core Max Turbo Frequency : 4.90 GHz
Efficient-core Max Turbo Frequency : 3.60 GHz
Performance-core Base Frequency : 3.70 GHz
Efficient-core Base Frequency : 2.80 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 125 W
Maximum Turbo Power : 150 W

Memory Specifications

Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s
ECC Memory Supported : Yes

Graphics Specification

Processor Graphics : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.45 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4

Expansion Options

Scalability : 1S Only
Max # of DMI Lanes : 8
PCI Express Revision : 5.0, 4.0
PCI Express Configurations ‡ : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0mm x 37.5mm

Warranty

3 Years
