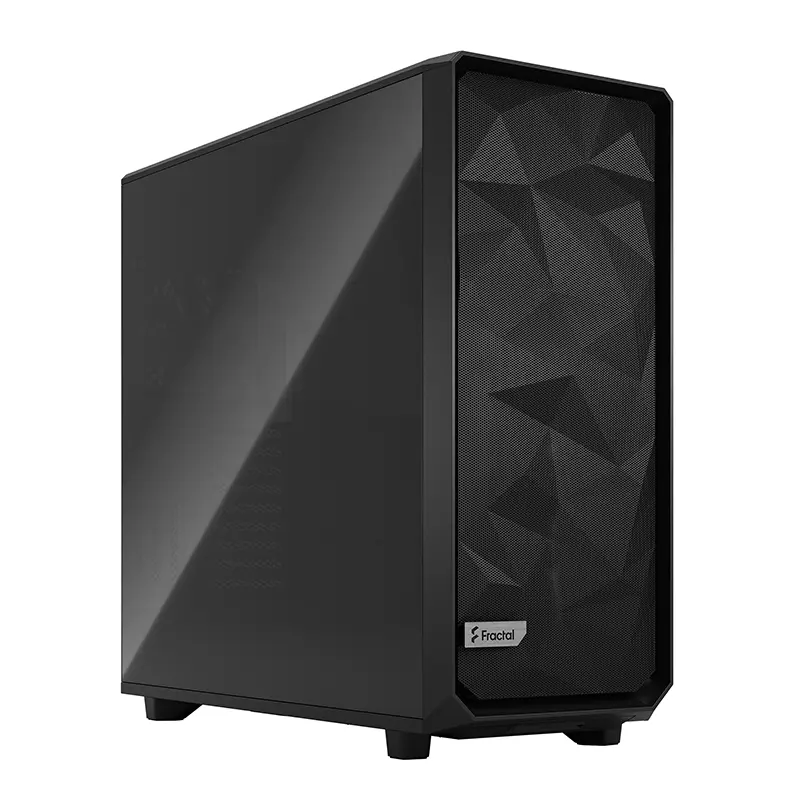

Fractal Design Meshify 2 XL TG Dark Tint Full Tower Case (Black)

SKU: FD-C-MES2X-01 Category:


Availability: Out of Stock

Out of stock

SKU: FD-C-MES2X-01 Category:


Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

  • Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior
  • Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
  • Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

Detachable front filter

  • The nylon filter is easily removed from the hinged mesh panel for increased airflow
  • Tether-free bezel for easier access to front fan mounts
  • Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage

  • Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
  • The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
  • Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design

  • Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
  • Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
  • An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB



Additional information

Case Type


600 x 240 x 566 mm
588 x 240 x 547 mm (w/o feet/protrusions/screws)

Net Weight

14.1 kg

Motherboard Support


Front I/O Ports

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

Expansion Slots


Drive Bays

3.5"/2.5" Universal drive mounts: 6 included, 18 positions total + 2 Multibracket
Dedicated 2.5" drive mounts: 2 included, 5 positions total

Included Fans

Front Fan : 2x Dynamic X2 GP-14
Rear Fan : 1x Dynamic X2 GP-14

Fan Support

Total fan mounts : 11x 120 mm or 9x 140 mm
Front Fan :4x 120 mm or 3x 140 mm
Top fan : 4x 120 mm or 3x 140 mm
Rear fan : 1x 120/140 mm
Bottom fan : 2x 120/140 mm

Radiator Support

Front radiator: Up to 480/420 mm
Top Radiator : Up to 480/420 mm
Bottom radiator: Up to 240/280 mm
Rear radiator: 120mm


PSU max length: 250 mm (Both HDD cages installed)
GPU max length: Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height: 185 mm
Cable routing space: 30 mm

Dust Filters

Top, Front, Bottom

Cable routing grommets


Fixed velcro straps


Captive thumbscrews

HDD, SSD and PSU brackets

Side Panels

Left : Tempered glass dark tint
Right : Steel

Package Contents

Meshify 2 XL Case, user manual, accessory box, screw box


2 Years
