Fractal Design Lumen S36 RGB AIO Liquid Cooler

SKU: FD-W-L1-S3602 Categories: , Tag:

14,750.00

Availability: Out of Stock

Out of stock

SKU: FD-W-L1-S3602 Categories: , Tag:

Description

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

  •  Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  •  Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Compatible with LGA 1700 and AM5

The right way up

  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning

New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling.

SUPERIOR PERFORMANCE RATIO

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

  • Thermal paste is pre-applied to ensure a proper and pain-free installation
  • Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

  • Supports the most common sockets for both Intel and AMD
  • Compatible with LGA 1700 and AM5

Additional information

CPU Socket

Sockets supported (Intel): LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD): AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version

Waterblock

Cold plate material : Copper
Thermal Paste : Pre-applied
Tube length : 400mm
Tube material : Low-permeability rubber with braided nylon sleeve
Fittings, block side : Articulating 90-degree Elbow
Fittings, radiator side : Barbed fitting
Block height : 43mm
Block measurements (with fittings) : 79 x 67 mm
Block diameter (main block body) : 67 mm

Radiator

Radiator Dimensions : 392 x 120 x 27 mm
Radiator Material : Aluminum
Radiator fan screw threads: 6-32

Pump Specs

Rotational speed: 4000 ± 10% RPM
Bearing type: Ceramic
PWM control: No
Acoustical noise: (full speed) 22 dBA
Maximum pressure: 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage:12V DC
Input current: (without fans) 0.34 A
MTTF: 50 000 hours

Fan

Fan type: Aspect 12 RGB PWM
Rotational speed: 500–2000 RPM
Fan bearing: Rifle bearings
Fan PWM control: Yes
Fan acoustical noise: <10–33.2 dBA
Fan maximum air flow: 13-56 CFM
Fan maximum static pressure : 0.230–2.34 mm H2O
Fan input voltage: 12V
Fan maximum input current: 0.37A
Fan MTTF: 90,000 hours

Package contents

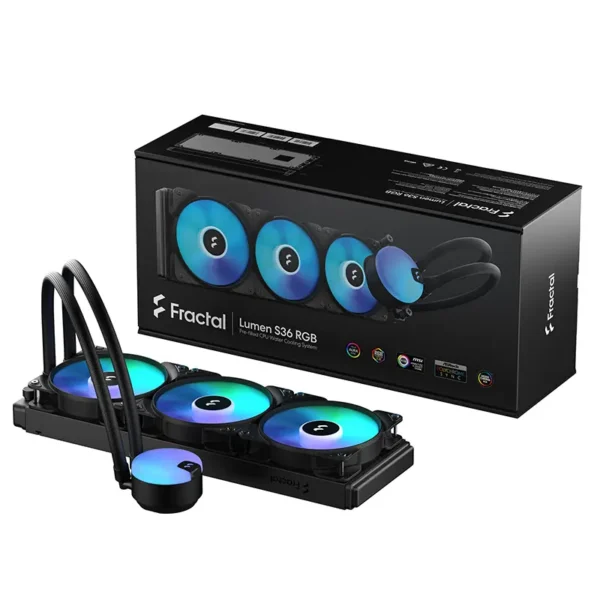

CPU Cooler Assembly, 3x Aspect 12 RGB PWM fans fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable

Warranty

3 Years
