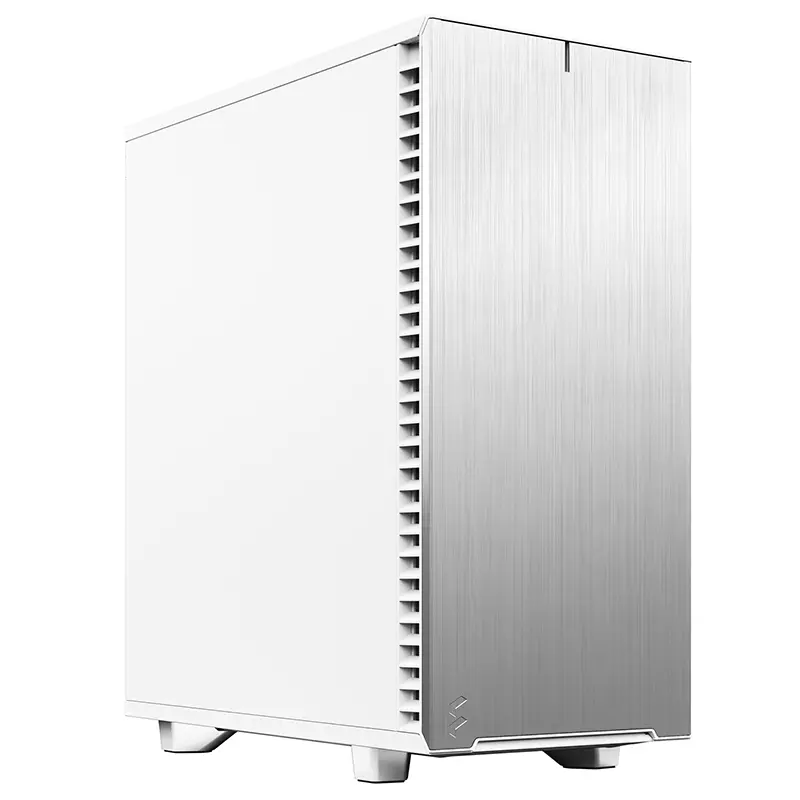

Fractal Design Define 7 Compact Solid Mid Tower Case (White)

SKU: FD-C-DEF7C-05 Category:

11,450.00

Availability: Out of Stock

Out of stock

SKU: FD-C-DEF7C-05 Category:

Description

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

• Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
• Fits GPUs up to 360 mm with a 240 mm radiator in the top

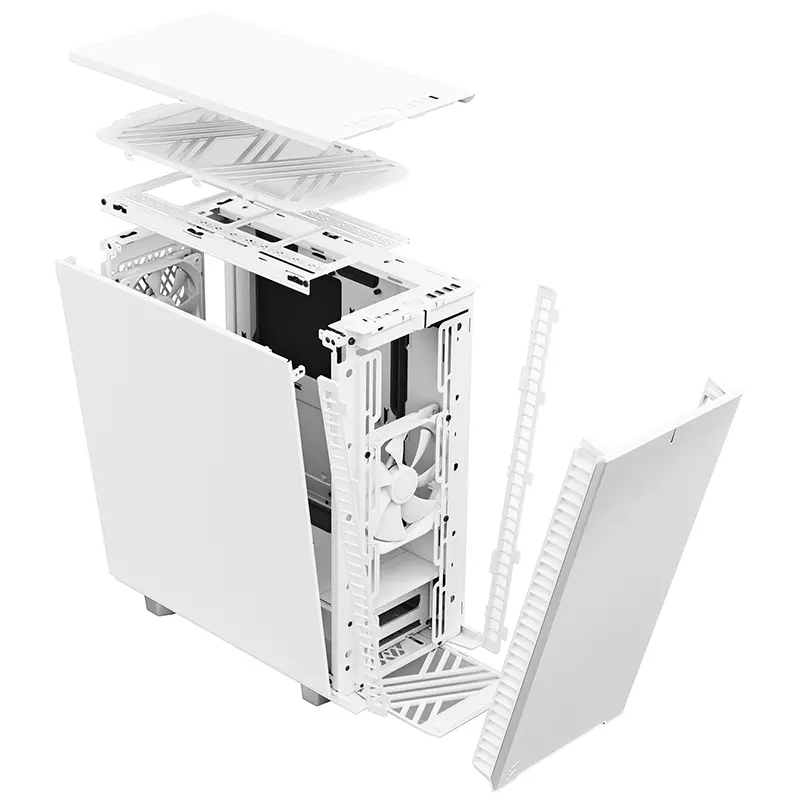

• Top panel effortlessly swaps from solid steel to filtered ventilation

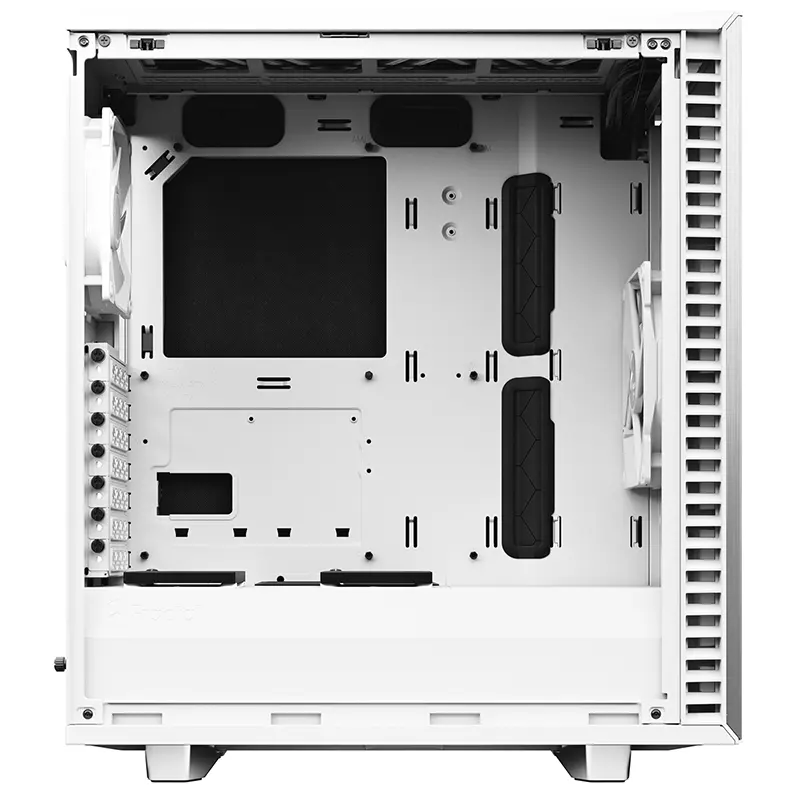

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

  • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

  • Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
  • 1x 120 mm and 1x 140 mm Dynamic X2 fans included
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support



Additional information

Case Type

Dimensions

427 x 210 x 474 mm
415 x 210 x 451 mm (w/o feet/protrusions/screws)

Net Weight

8.61 kg

Motherboard Support

ATX / mATX / Mini-ITX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button

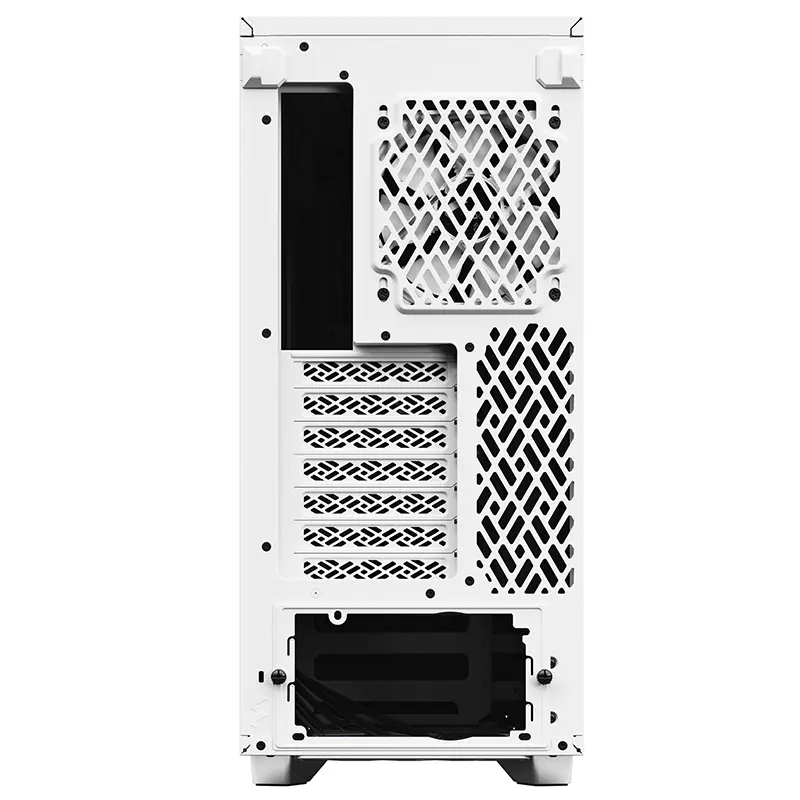

Expansion Slots

7

Drive Bays

3.5"/2.5" drive mounts: 2
Dedicated 2.5" drive mounts: 2 trays included, 4 positions total

Included Fans

Front Fan : 1x Dynamic X2 GP-14
Rear Fan : 1x Dynamic X2 GP-12

Fan Support

Total fan mounts :7x 120 or 4x 140 mm and 2x 120 mm
Front Fan :3x 120 or 2x 140 mm
Top fan : 2x 120 or 2x 140 mm
Rear fan : 1x 120 mm
Bottom fan : 1x 120 mm (requires removal of HDD cage)

Radiator Support

Front radiator: Up to 360/280 mm (max 145 mm width)
Top Radiator:Up to 240 mm
Bottom radiator: 120 mm (requires removal of HDD cage)
Rear radiator: 120mm

Clearance

PSU max length:200 mm total (165 mm w/ HDD cage and front fan)
GPU max length: 341 mm (360 mm without front fan)
CPU cooler max height: 169 mm

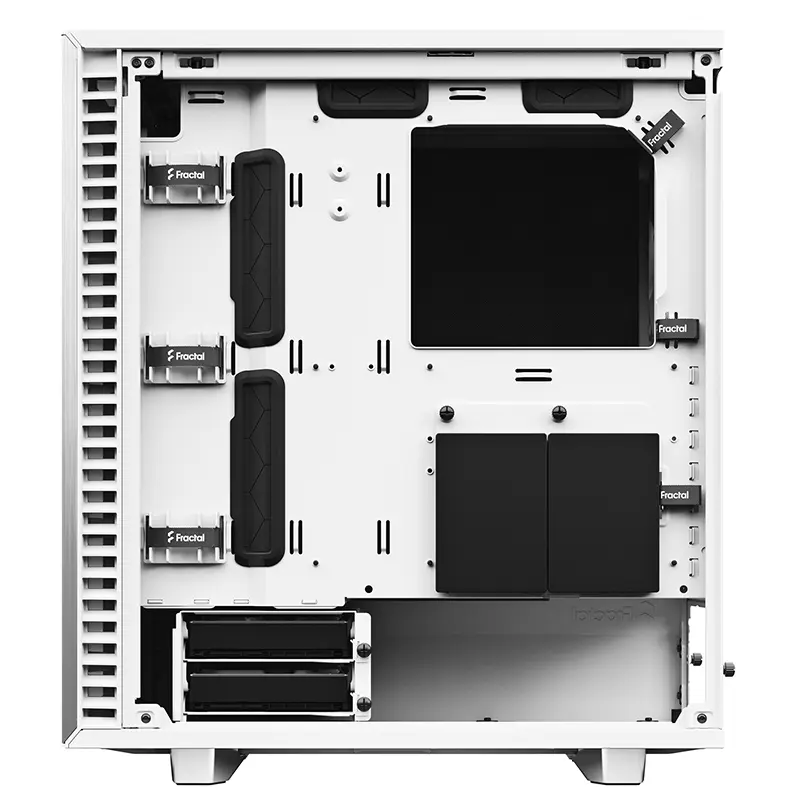

Cable routing space: 17-28 mm

Dust Filters

Top, 2x front, full length bottom

Cable routing grommets

Yes

Fixed velcro straps

Yes

Captive thumbscrews

HDD, SSD and PSU brackets

Side Panels

Left : Industrial sound-damped steel
Right : Industrial sound-damped steel

Package Contents

Define 7 Compact, Accessory box, User manual, Ventilated top panel

Warranty

2 Years
