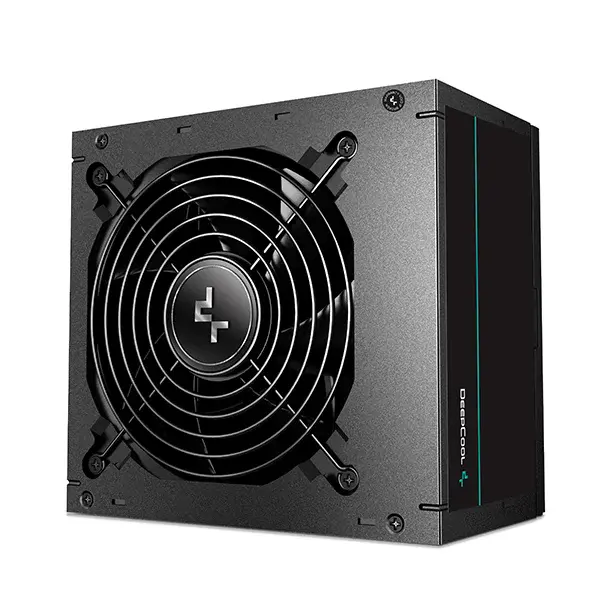

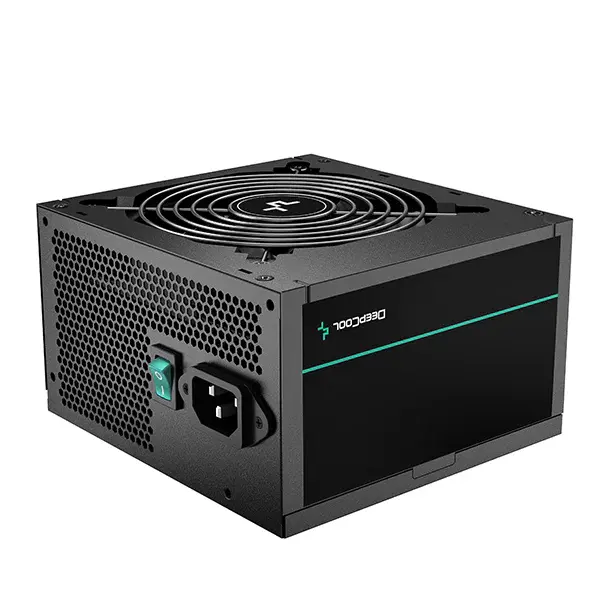

Deepcool PM750D – 750 Watt Power Supply

Brands:
SKU: R-PM750D-FA0B-UK Category:

6,050.00

Availability: Out of Stock

Out of stock

SKU: R-PM750D-FA0B-UK Category:

Description

DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS GOLD CERTIFIED

Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

QUALITY TOPOLOGY

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

BUILT TO SPEC

Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

EFFICIENCY THROUGHOUT

The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

PEACE OF MIND

Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP/UVP.

Additional information

ATX Version

ATX12V V2.4

80 Plus Rating

Product Dimensions

150×140×86mm (W x L x H)

PFC

Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors

Japanese Bulk Capacitor

Total Wattage

Cable Type

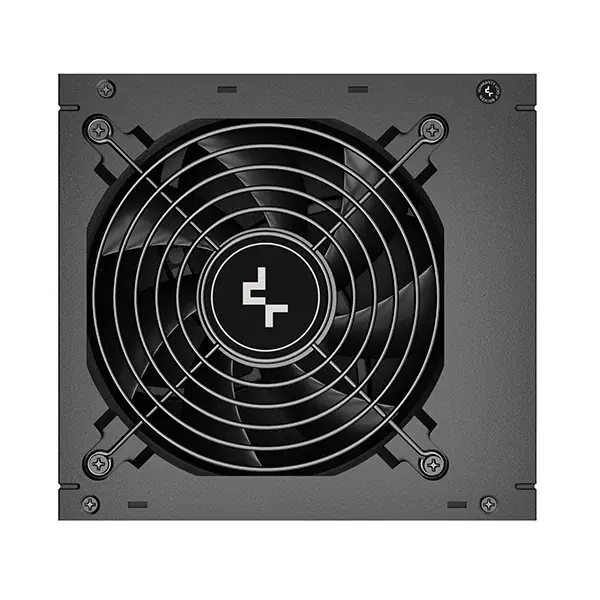

Fan

Fan Size : 120mm
Fan Bearing : Hydro Bearing

Efficiency

≥90% Under Typical Load (50% Loading)

Power Good Signal

100 – 150 ms

Hold Up Time

≥16ms(75% Load)

MTBF

100,000 Hours

Protections

OPP/OVP/SCP/OTP/OCP/UVP

Regulator

TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS

Power Connectors

Main Power Connector 24 (20+4) Pin x1 : 1
CPU(4+4)Pin x2 : 1
PCI-E (6+2)Pin x1 : 3
SATA x3 : 2
4Pin Peripheral x3 : 1

Warranty

5 Years
