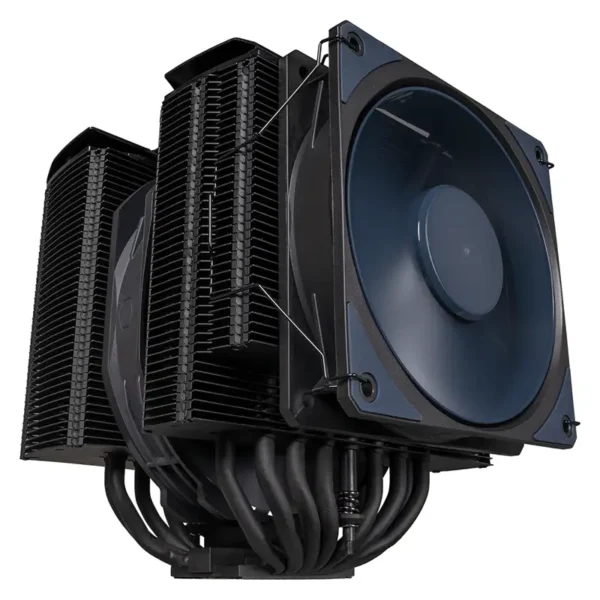

Cooler Master MasterAir MA824 Stealth Air Cooler

SKU: MAM-D8PN-318PK-R1 Categories: ,

9,995.00

Availability: Out of Stock

Out of stock

SKU: MAM-D8PN-318PK-R1 Categories: ,

Description

EIGHT RECREATED

  • 8 Superconductive Composite Heat Pipes
  • Expanded Copper Base
  • Dual Tower Push-Pull Setup
  • 135mm and 120mm Mobius Series Fans
  • All Black Stealth Design
  • Maximum RAM Clearance

8 IN-HOUSE DESIGNED SUPERCONDUCTIVE COMPOSITE HEAT PIPES

8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.

PERFORMANCE DUAL TOWER

Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.

8 HEAT PIPE ARRAY

Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

EXPANDED COPPER BASE

Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.

DUAL MOBIUS FANS

Equipped with dual variable Mobius fans for exceptional silence without compromising performance.

DUAL STAGGERED FAN SETUP

Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.

MAXIMUM RAM CLEARANCE

120mm Mobius fan provides 42mm of RAM clearance to fit a wider range of builds without sacrificing performance.

ALL BLACK STEALTH DESIGN

Stealth Series aluminum top cover and all black hardware provides a premium and clean design.

Additional information

CPU Socket

LGA1700, LGA1200, LGA1151, LGA1150, LGA1156, LGA1155, AM5, AM4

Dimensions

162.2 x 150.6 x 165.6 mm

Heat Sink Material

8 Heat Pipes, Aluminum Fins

Fan Specs

Fan Dimensions (L x W x H) : 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm
Fan Quantity : 135mm Fan: 1 PC, 120mm Fan: 1 PC
Fan Speed : 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-1950 RPM ± 15%
Fan Airflow : 135mm Fan: 63.6 CFM (Max), 120mm Fan: 63.1 CFM (Max)
Fan Noise Level : 135mm Fan: 24.6 dBA (Max), 120mm Fan: 22.6 dBA (Max)
Fan Air Pressure : 135mm Fan: 1.92 mmH₂O, 120mm Fan: 2.69 mmH₂O
Fan MTTF : >200,000 Hours
Fan Bearing Type : Loop Dynamic Bearing
Fan Power Connector : 4-Pin (PWM)
Fan Rated Voltage : 12VDC
Fan Rated Current : 135mm Fan: 0.1 A, 120mm Fan: 0.12 A, 0.25A
Fan Power Consumption : 135mm Fan: 1.2-2.4W, 120mm Fan: 1.44-3.0W

Warranty

5 Years
