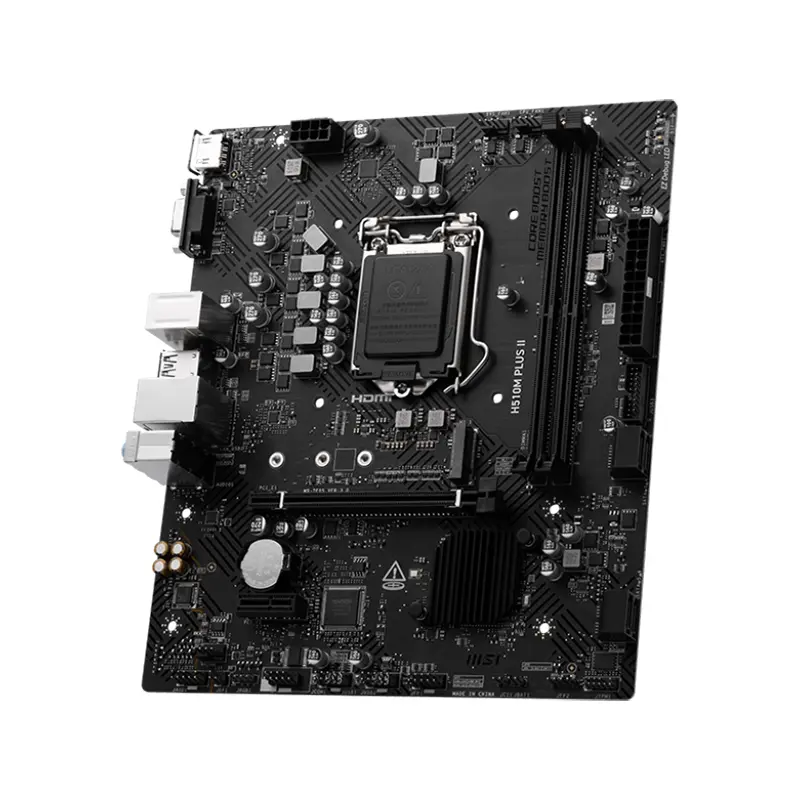

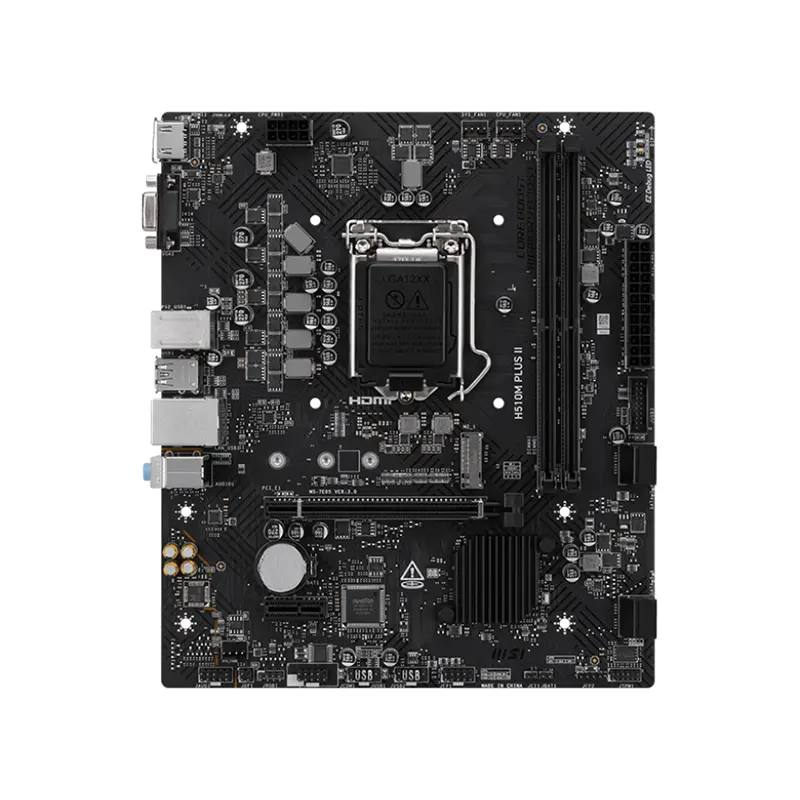

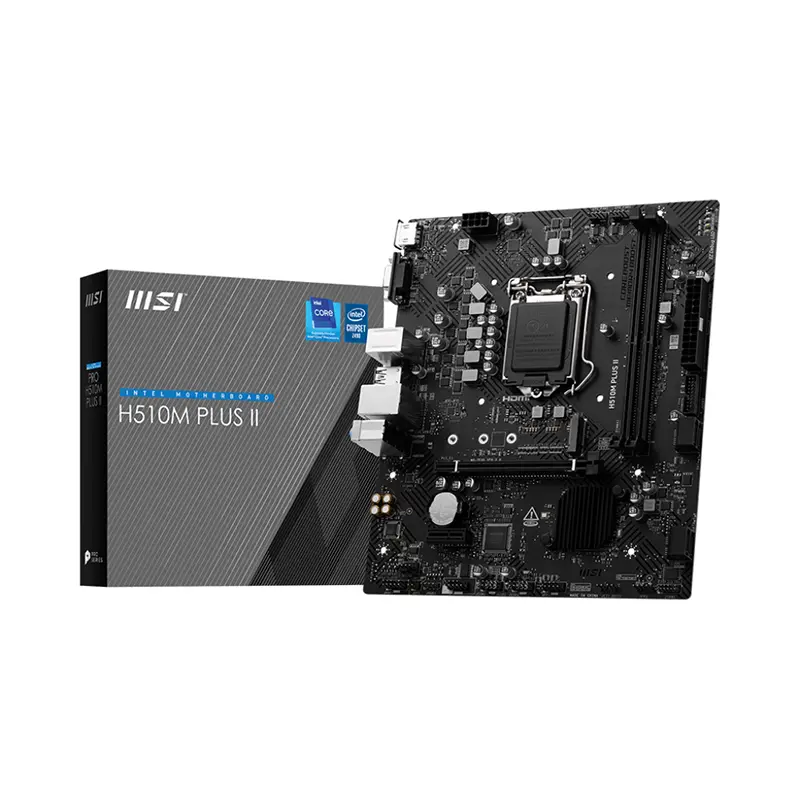

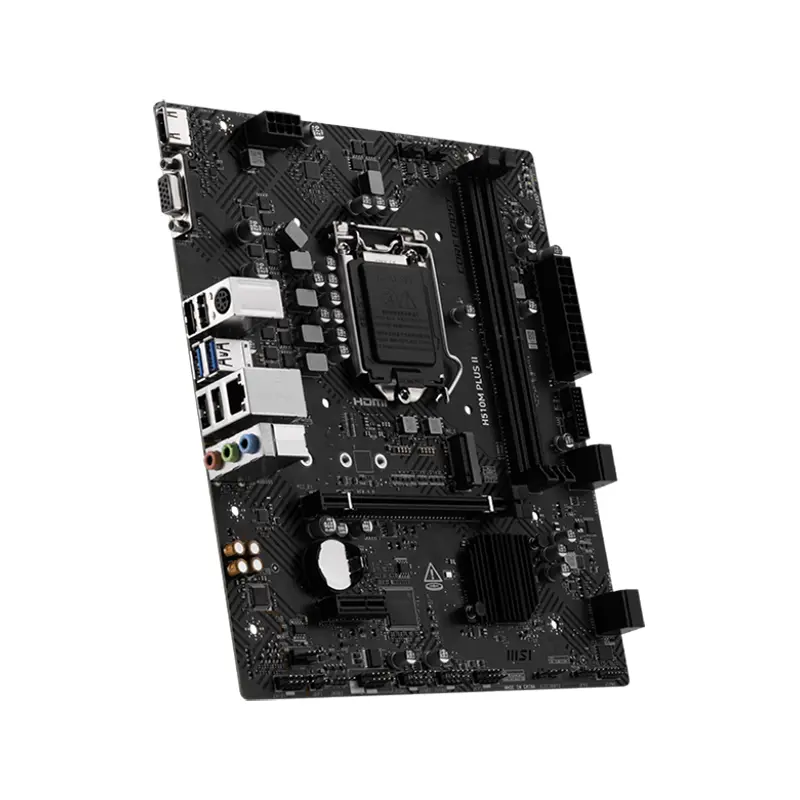

MSI H510M Plus II Motherboard
MSI H510M Plus II Motherboard - Image 2
MSI H510M Plus II Motherboard - Image 3
MSI H510M Plus II Motherboard - Image 4
MSI H510M Plus II Motherboard - Image 5

MSI H510M Plus II Motherboard

SKU: H510M-PLUS-II Brand:

Original price was: ₹8,000.00.Current price is: ₹5,750.00.

In stock

In stock

Compare
0 People watching this product now!

Payment Methods:

Description

H510M PLUS II

  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for LGA 1200 socket
  • Supports DDR4 Memory 2933 MT/s (MAX)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

Weight2.5 kg
Dimensions18 × 18 × 10 cm
ProcessorSupports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
ChipsetIntel H510
Memory2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Onboard Graphics1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
AudioRealtek® ALC897 Codec 7.1-Channel High Definition Audio
LANRealtek® 8111H Gigabit LAN
USB4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
Internal IO1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED Features4x EZ Debug LED

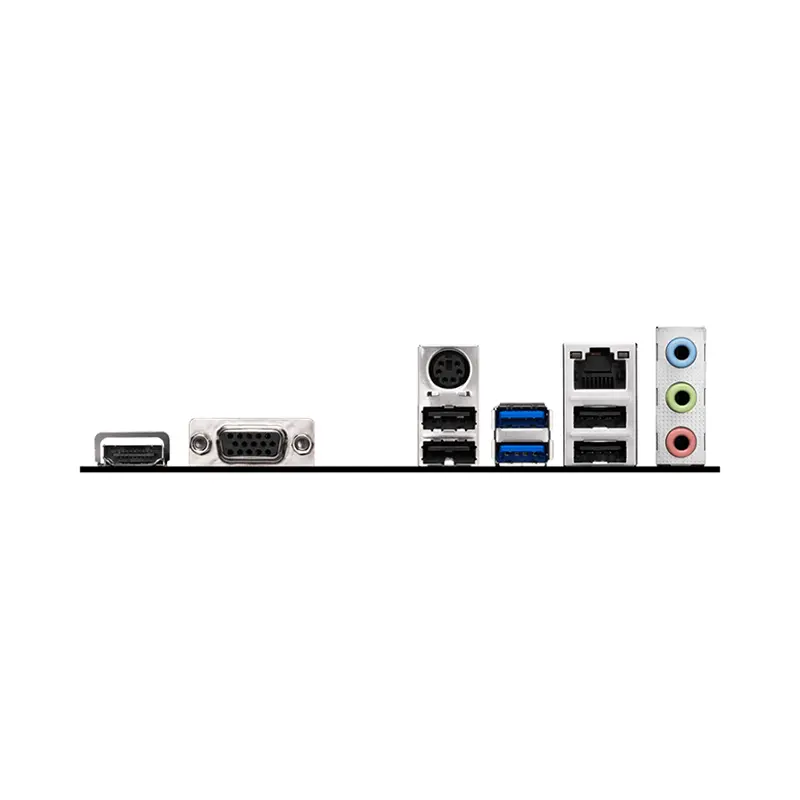

Back Panel PortsHDMI™ VGA Keyboard / Mouse USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 USB 2.0
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
Form factorMicro ATX
Warranty3 Years
