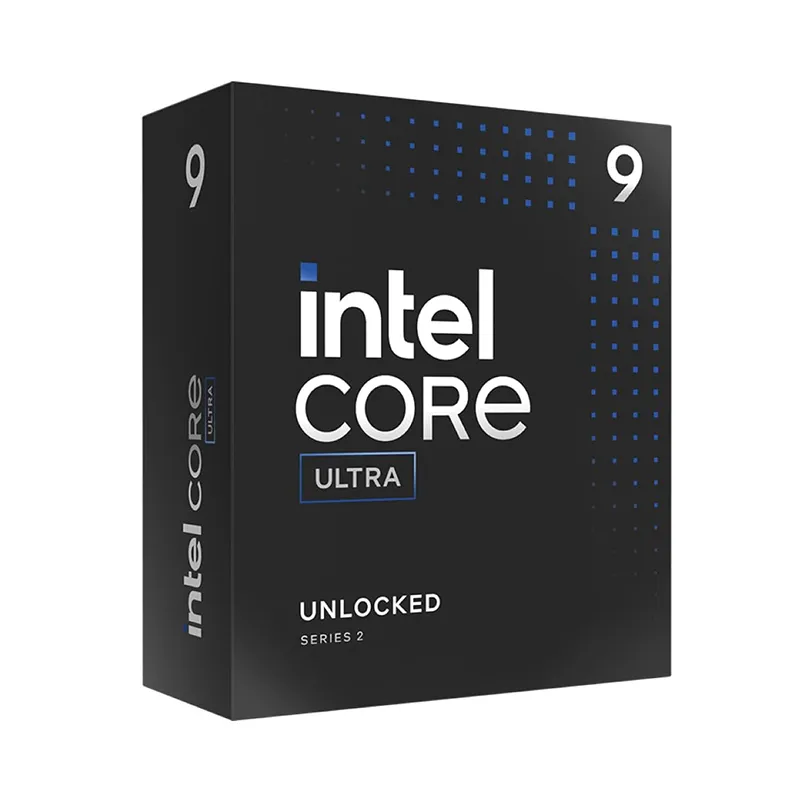

Intel Core Ultra 9 285K Unlocked Desktop Processor with Graphics

SKU: CORE-ULTRA-9-285K-BOX Brand:

Out of stock

Out of stock

0 People watching this product now!

Payment Methods:

Description

  • Get ultra-efficient with Intel Core Ultra desktop processors that improve both performance and efficiency so your PC can run cooler, quieter, and quicker.
  • It has a total of 24 cores of 24 cores for an efficiency core of 16 cores and a performance core P-core of 8 cores for processing 24 threads
  • Supports PCIe Gen 5.0 Expand memory support to DDR5-6400
  • AI High Performance RetailBox Version *CPU cooler not included. Requires separately. New NPU Compatible with Windows 11

Specifications

Weight 1 kg
Dimensions 15 × 15 × 15 cm
Essentials

Product Collection : Intel® Core™ Ultra Processors (Series 2) Code Name : Products formerly Arrow Lake Vertical Segment : Desktop Processor Number : 285K Overall Peak TOPS (Int8) : 36

CPU Specifications

Total Cores : 24 # of Performance-cores : 8 # of Efficient-cores : 16 Total Threads : 24 Max Turbo Frequency : 5.70 GHz Intel® Thermal Velocity Boost Frequency : 5.70 GHz Intel® Turbo Boost Max Technology 3.0 Frequency : 5.60 GHz Performance-core Max Turbo Frequency : 5.50 GHz Efficient-core Max Turbo Frequency : 4.60 GHz Performance-core Base Frequency : 3.70 GHz Efficient-core Base Frequency : 3.20 GHz Cache : 36 MB Intel® Smart Cache Total L2 Cache : 40 MB Processor Base Power : 125 W Maximum Turbo Power : 250 W Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes CPU Lithography : TSMC N3B

Memory Specifications

Max Memory Size (dependent on memory type) : 192 GB Memory Types : Up to DDR5 6400 MT/s Max # of Memory Channels : 2 ECC Memory Supported : Yes

Graphics Specifications

GPU Name : Intel® Graphics Graphics Base Frequency : 300 MHz Graphics Max Dynamic Frequency : 2.00 GHz GPU Peak TOPS (Int8) : 8 Graphics Output : DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores : 4 Max Resolution (HDMI)‡ : 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) Max Resolution (DP)‡ : 8K @ 60Hz Max Resolution (eDP – Integrated Flat Panel)‡ : 4K @ 60Hz DirectX* Support : 12 OpenGL* Support : 4.5 OpenCL* Support : 3.0 Multi-Format Codec Engines : 2 Intel® Quick Sync Video : Yes # of Displays Supported : 4 Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes

NPU Specifications

NPU Name : Intel® AI Boost NPU Peak TOPS (Int8) : 13 Sparsity Support : Yes Windows Studio Effects Support : Yes

Expansion Options

Direct Media Interface (DMI) Revision : 4.0 Max # of DMI Lanes : 8 Scalability : 1S Only PCI Express Revision : 5.0 and 4.0 PCI Express Configurations : Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 Max # of PCI Express Lanes : 24

Package Specifications

Sockets Supported : FCLGA1851 Thermal Solution Specification : PCG 2020A TJUNCTION : 105°C

Warranty

3 Years
