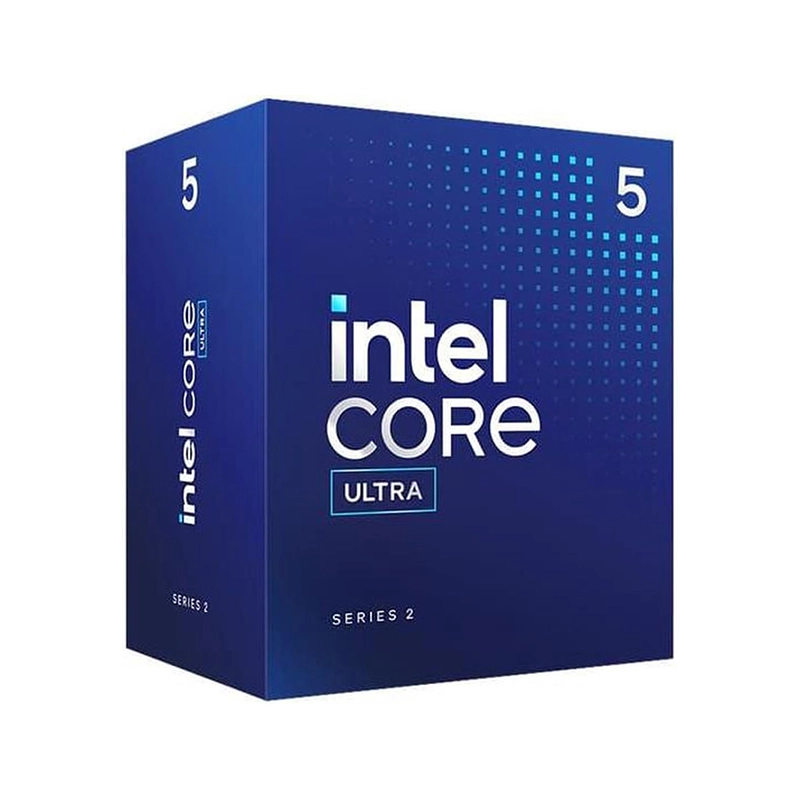

Intel Core Ultra 5 225 Desktop Processor

SKU: BX80768225 Brand:

Original price was: ₹35,000.00.Current price is: ₹16,995.00.

In stock

In stock

0 People watching this product now!

Payment Methods:

Description

  • Intel Core Ultra 5 processor for desktop systems 225, with integrated processor graphics.
  • Featuring PCIe 5.0 and 4.0 support and DDR5 support, Intel Core Ultra 5 desktop processors (Series 2) are optimized for gamers and productivity and help deliver high performance.
  • Integrated graphics. Compatible with motherboards with Intel 800 series chipset. 65W of core processor power, with a max of 121W.

Specifications

Weight 1 kg
Dimensions 15 × 15 × 15 cm
Essentials

Product Collection : Intel® Core™ Ultra Processors (Series 2)
Code Name : Products formerly Arrow Lake
Vertical Segment : Desktop
Processor Number : 225
Overall Peak TOPS (Int8) : 23

CPU Specifications

Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
# of Low Power Efficient-cores : 0
Total Threads : 10
Max Turbo Frequency : 4.9 GHz
Performance-core Max Turbo Frequency : 4.9 GHz
Efficient-core Max Turbo Frequency : 4.4 GHz
Performance-core Base Frequency : 3.3 GHz
Efficient-core Base Frequency : 2.7 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 22 MB
Processor Base Power : 65 W
Maximum Turbo Power : 121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography : TSMC N3B

Memory Specifications

Max Memory Size (dependent on memory type) : 256 GB
Memory Types : Up to DDR5 6400 MT/s
Max # of Memory Channels : 2
ECC Memory Supported ‡ : No

GPU Specifications

GPU Name‡ : Intel® Graphics
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.8 GHz
GPU Peak TOPS (Int8) : 4
Graphics Output : eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores : 2
Max Resolution (HDMI)‡ : 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ : 3840 x 2400 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3
H.264 Hardware Encode/Decode : Yes
H.265 (HEVC) Hardware Encode/Decode : Yes
AV1 Encode/Decode : Yes
Intel® Quick Sync Video : Yes
# of Displays Supported ‡ : 4
Device ID : 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes
AI Software Frameworks Supported by GPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

NPU Name‡ : Intel® AI Boost
NPU Peak TOPS (Int8) : 13
Sparsity Support : Yes
Windows Studio Effects Support : Yes
AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision : 4
Max # of DMI Lanes : 8
Intel® Thunderbolt™ 4 : Yes
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations ‡ : Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes : 24

Package Specifications

Sockets Supported : FCLGA1851
Thermal Solution Specification : PCG 2022C
Max Operating Temperature : 105 °C
Package Size : 45 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 3.5
Intel® Thread Director : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology ‡ : 2.0
Intel® Hyper-Threading Technology ‡ : No
Intel® 64 ‡ : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes

Security & Reliability

Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) ‡ : No
Intel® Standard Manageability (ISM) ‡ : Yes
Intel® Remote Platform Erase (RPE) ‡ : No
Intel® One-Click Recovery ‡ : No
Intel® Secure Key : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption – Multi Key : No
Intel® AES New Instructions : Yes
Intel® Trusted Execution Technology ‡ : Yes
Execute Disable Bit ‡ : Yes
Intel® OS Guard : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : No
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ : No
Intel® Virtualization Technology (VT-x) ‡ : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes
