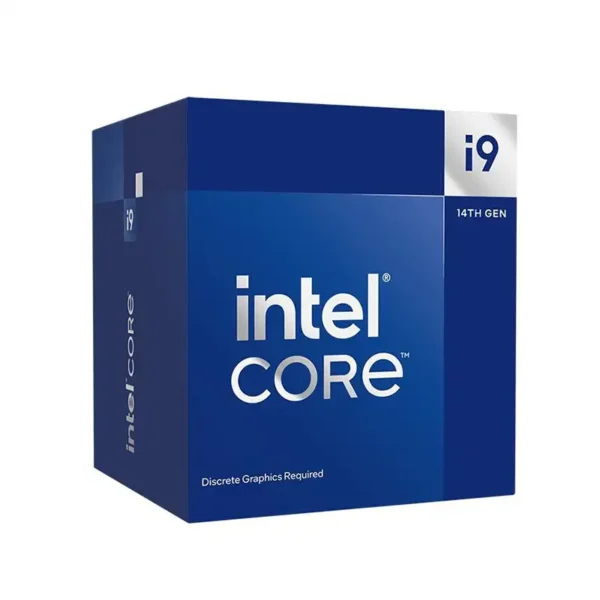

Intel Core i9-14900F Desktop Processor

SKU: CORE-I9-14900F-BOX Brand:

Out of stock

Out of stock

0 People watching this product now!

Payment Methods:

Description

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Specifications

Weight 1 kg
Dimensions 15 × 15 × 15 cm
Essentials

Product Collection : 14th Generation Intel® Core™ i9 Processors Code Name : Products formerly Raptor Lake Vertical Segment : Desktop Processor Number : i9-14900F Lithography: Intel 7

CPU Specifications

Total Cores : 24 # of Performance-cores : 8 # of Efficient-cores : 16 Total Threads : 32 Max Turbo Frequency : 5.80 GHz Intel® Thermal Velocity Boost Frequency : 5.8 GHz Intel® Turbo Boost Max Technology 3.0 Frequency : 5.60 GHz Performance-core Max Turbo Frequency : 5.40 GHz Efficient-core Max Turbo Frequency : 4.30 GHz Performance-core Base Frequency : 2.00 GHz Efficient-core Base Frequency : 1.50 GHz Cache : 36 MB Intel® Smart Cache Total L2 Cache : 32 MB Processor Base Power : 65 W Maximum Turbo Power : 219 W

Memory Specifications

Max Memory Size (dependent on memory type) : 192 GB Memory Types : Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s Max # of Memory Channels : 2 Max Memory Bandwidth : 89.6 GB/s

Expansion Options

Direct Media Interface (DMI) Revision : 4.0 Max # of DMI Lanes : 8 Scalability : 1S Only PCI Express Revision : 5.0 and 4.0 PCI Express Configurations : Up to 1×16+4, 2×8+4 Max # of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1700 Max CPU Configuration : 1 Thermal Solution Specification : PCG 2020C TJUNCTION : 100°C Package Size : 45.0 mm x 37.5 mm
