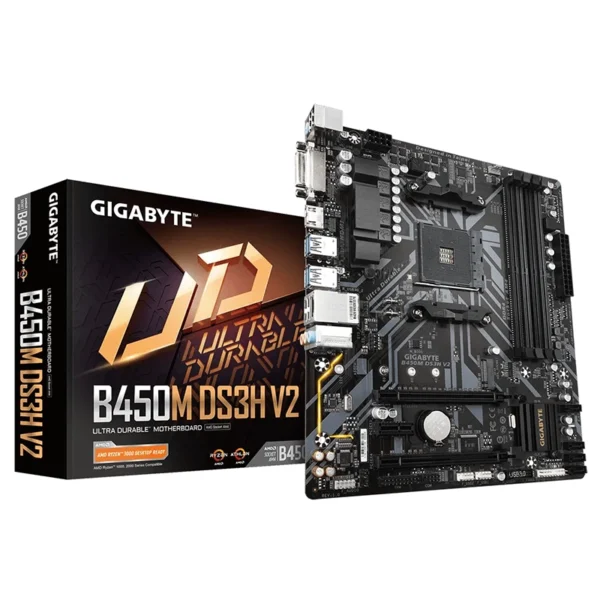

Gigabyte B450M DS3H V2 Motherboard

Description

AMD B450 Ultra Durable Motherboard with Digital VRM Solution, Realtek GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, RGB LED Strip Header, CEC 2019 Ready

• Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Feature Digital VRM Solution with Low RDS(on) MOSFETs
• HDMI, DVI-D Ports for Multiple Display
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Realtek GbE LAN with Bandwidth Management
• RGB Fusion supports RGB LED Strips in 7-Colors
• Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

4+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 4+2 phases digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

NVMe PCIe Gen3 x4 22110 M.2 Connector

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry’s Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
