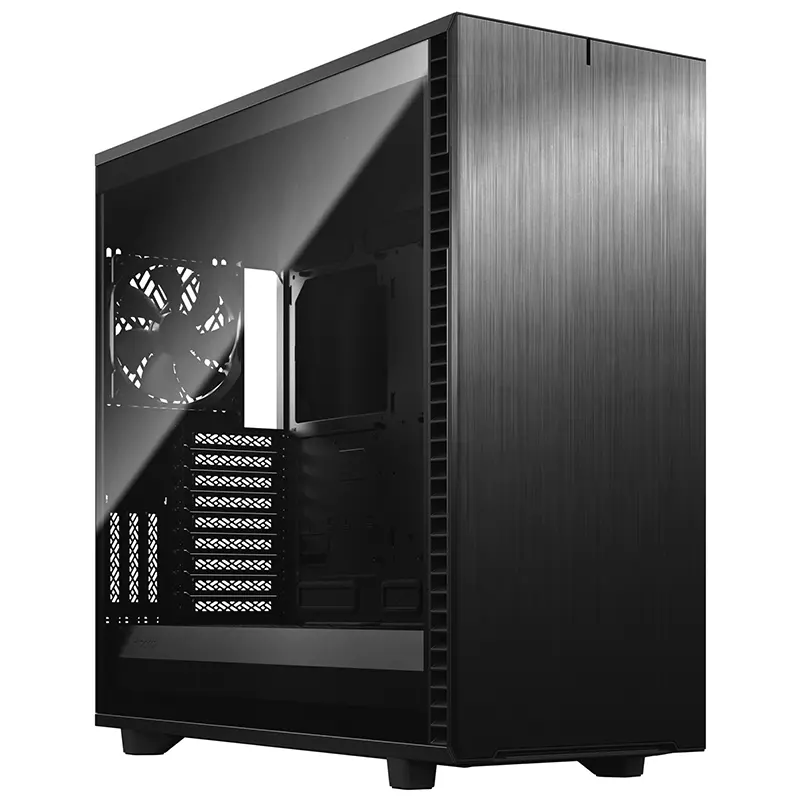

Fractal Design Define 7 XL TG Light Tint Mid Tower Case (Black)

SKU: FD-C-DEF7X-02 Brand:

Out of stock

Out of stock

0 People watching this product now!

Payment Methods:

Description

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

• New chassis design opens up to fully expose the case interior

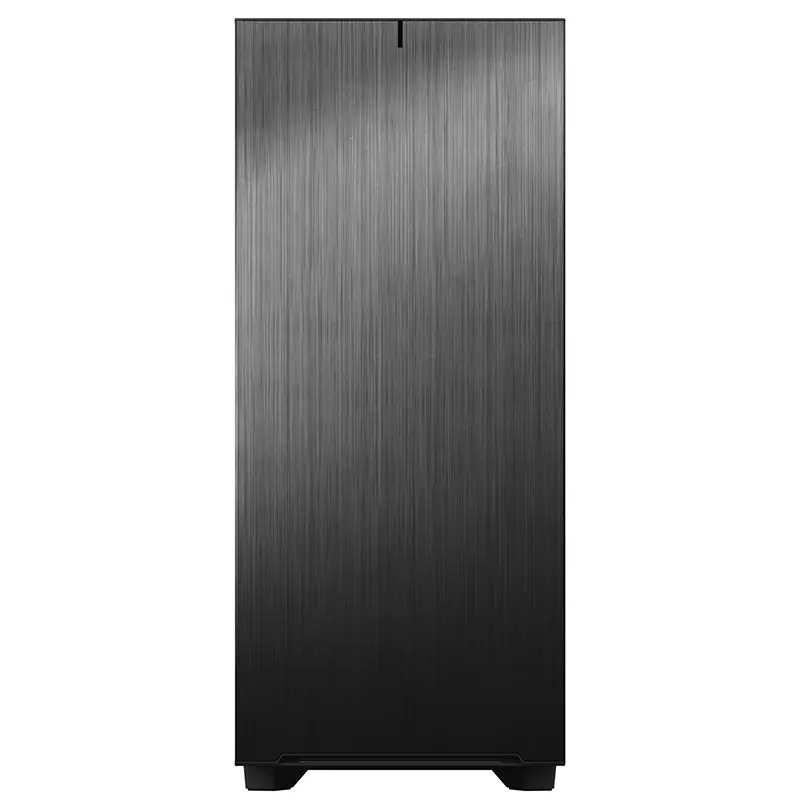

• Anodized aluminum front panel with reversible dual-handed hinges
• Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout

Plenty of room for massive builds

  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Ventilated PSU shroud with two-part removable cover
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
  • Sturdy new HDD cage design with vibration damped trays
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering

Specifications

Weight25 kg
Dimensions20 × 20 × 20 cm
Case typeMid Tower
Dimensions604 x 240 x 566 mm 590 x 240 x 548 mm (w/o feet/protrusions/screws)
Motherboard SupportE-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Front I/O Ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Expansion Slots9+3
Drive Bays5.25” drive mounts: 2 3.5″/2.5″ Universal drive brackets: 6 + 2 included, 18 positions total Dedicated 2.5″ drive brackets: 2 included, 5 positions total
Included FansFront Fan : 2 x Dynamic X2 GP-14 Rear Fan : 1x Dynamic X2 GP-14
Fan SupportTotal fan mounts : 11 x 120 mm or 9 x 140 mm Front Fan : 4 x 120 mm or 3 x 140 mm Top fan : 4 x 120 mm or 3 x 140 mm Rear fan : 1 x 120/140 mm Bottom fan : 2 x 120/140 mm
Radiator SupportFront radiator: Up to 480/420 mm Top Radiator: Up to 480/420 mm Bottom radiator: Up to 240/280 mm Rear radiator: 120mm
ClearancePSU max length: 250 mm (both HDD cages installed) GPU max length: – Storage layout: 359 mm – Open layout: 549 mm (524 mm w/ front fan) CPU cooler max height: 185 mm Cable routing space: 30 mm
Dust FiltersTop, 2 x Front, Bottom + PSU
Cable routing grommetsYes
Fixed velcro strapsYes
Captive thumbscrewsHDD, SSD and PSU brackets
Side PanelsLeft : Tempered Glass Right : Industrial sound-damped steel
Warranty2 Years
