-22%
Quick view

ASUS ROG Strix X570-E Gaming WiFi II Motherboard

,

Out of stock

Read more
Weight 5 kg
Dimensions 18 × 18 × 10 cm
Processor

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Chipset

AMD X570
Memory

AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133, un-buffered memory
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4466(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133, un-buffered memory
AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics

1 x DisplayPort
1 x HDMI® port
* Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
* Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
– VGA resolution support depends on processors' or graphic cards' resolution.
For more details about the video input and output settings please refer to the user manual.
Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Storage

Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series / 4000 G-Series / 3000 G-Series / 2000 G-Series / 2000 Series Processor:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
Supports RAID 0, 1, 10
Ethernet

1 x Intel® 1Gb Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel® I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology
Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
*Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB

Rear USB: Total 8 ports
AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
– 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD Ryzen 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
– 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
– 1 x USB 3.2 Gen2 front panel connector
– 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
– 2 x USB3.2 Gen1 ports (at front panel)
– 4 x USB 2.0 ports (at front panel)
Front USB: Total 7 ports
Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel Ports

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Headers

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Software Features

ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst V
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– 5-Way Optimization by Dual Intelligent Processors 5
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
– EZ update
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Accessories

Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card Installation Media
1 x Support DVD Documentation
1 x User manual
Operating System

Windows® 11 64-bit
Windows® 10 64-bit
Manageability

WOL by PME, PXE
Form factor

ATX
Warranty

3 Years
-27%
Quick view

ASUS ROG Strix B550-F Gaming Motherboard

,

Out of stock

Read more
Weight 3 kg
Dimensions 18 × 18 × 10 cm
Processor

AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset

AMD B550
Memory

4 x DIMM, Max. 128GB, DDR4
4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
OptiMem II
3rd Gen AMD Ryzen™ Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics

1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types. Integrated Graphics Processor
Expansion Slots

AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
* 3 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
Storage

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN

Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Audio

– Audio Shielding
– Premium Japanese audio capacitors
– Audio Cover
– Optical S/PDIF in port(s) at back panel
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
– SupremeFX Shielding™ Technology
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback
* – Gold-plated jacks
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB

Front USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 2.0 port(s)
Software Features

ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
– AI Noise Cancelling Microphone
AI Suite 3:
– PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV
EVO
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Back Panel Ports

1 x BIOS FlashBack™ Button(s)
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
1 x DisplayPort
1 x Optical S/PDIF out
5 x Gold-plated audio jacks
1 x HDMI
2 x USB 2.0
Internal I/O Headers

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Addressable Gen 2 header(s)
Accessories

1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
4 x SATA 6Gb/s cable(s)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x ROG Thank you card User´s manual
1 x Supporting DVD
1 x Extension cable for Addressable LED
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows® 11 64-bit
Windows® 10 64-bit
Manageability

WOL by PME, PXE
Form factor

ATX
Warranty

3 Years
-18%
Quick view

ASUS TUF Gaming B550-Plus WiFi II Motherboard

,

Out of stock

Read more
Weight 4 kg
Dimensions 18 × 18 × 10 cm
Processor

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset

AMD B550
Memory

4 x DIMM, Max. 128GB, DDR4 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory*
Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.
Graphics

1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
3 x PCIe 3.0 x1 slot*
*PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
**Support PCIe bifurcation for RAID on CPU function.
Storage

Supports 2 x M.2 slots and 6 x SATA 6Gb/s port
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Support Raid 0, 1, 10
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
Wireless & Bluetooth

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2*
*Bluetooth v5.2 function will be ready in Windows 11 or later.
USB

Rear USB: Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB: Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback"
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
– Audio Cover
Back Panel Ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Headers

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt header
Software Features

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
PC Cleaner
– EZ update
– System Information
Aura Creator
TUF GAMING CPU-Z
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows® 11 64-bit
Windows® 10 64-bit
Manageability

WOL by PME, PXE
Form factor

ATX
Warranty

3 Years
-41%
Quick view

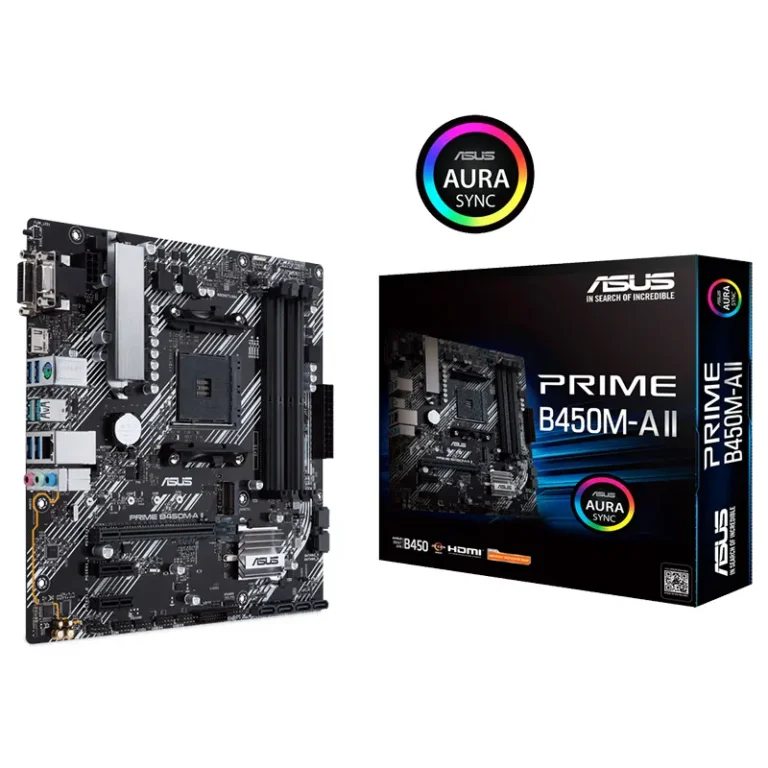

ASUS Prime B450M-A II Motherboard

,

Out of stock

Read more
Weight 2 kg
Dimensions 18 × 18 × 10 cm
Processor

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset

AMD B450
Memory

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
* Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
Storage

Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd/ 2nd/ 1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Athlon™ with Radeon™ Vega Graphics Processors : *1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN

Realtek® RTL8111H
ASUS LANGuard
Audio

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB

Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features

ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
PC Cleaner
– EZ update
– System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Back Panel Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Internal I/O Headers

1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header
Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows® 10 64-bit
Windows® 7 64-bit *
*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
Manageability

WOL by PME, PXE
Form factor

Micro ATX
Warranty

3 Years
-33%
Quick view

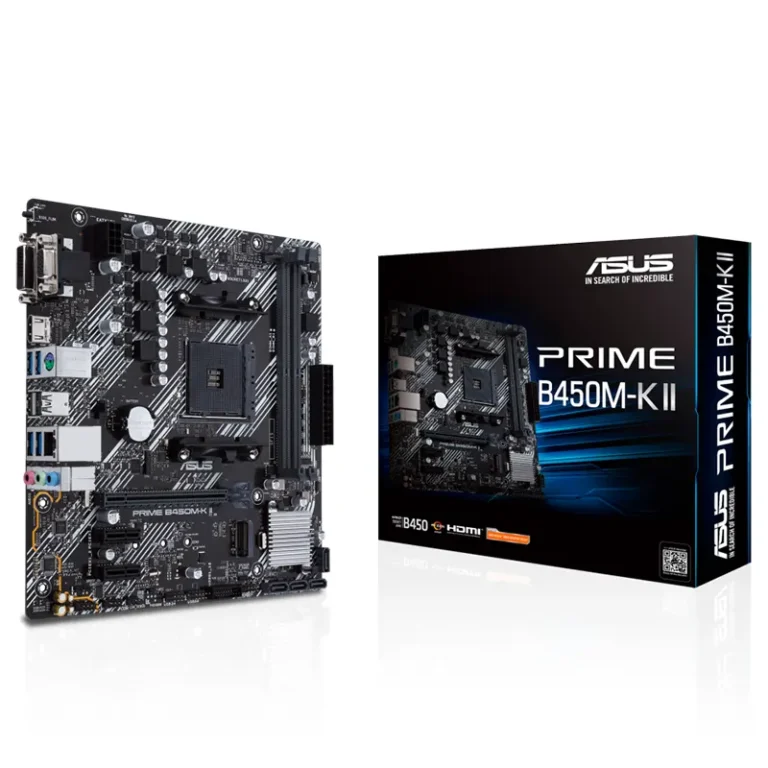

ASUS Prime B450M-K II Motherboard

,

Out of stock

Read more
Weight 2 kg
Dimensions 18 × 18 × 10 cm
Processor

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset

AMD B450
Memory

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™
Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
* Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN

Realtek® RTL8111H
ASUS LANGuard
Audio

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB

Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
PC Cleaner
– EZ update
– System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Back Panel Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Internal I/O Headers

1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows® 10 64-bit
Windows® 7 64-bit *
*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
Manageability

WOL by PME, PXE
Form factor

Micro ATX
Warranty

3 Years
-22%
Quick view

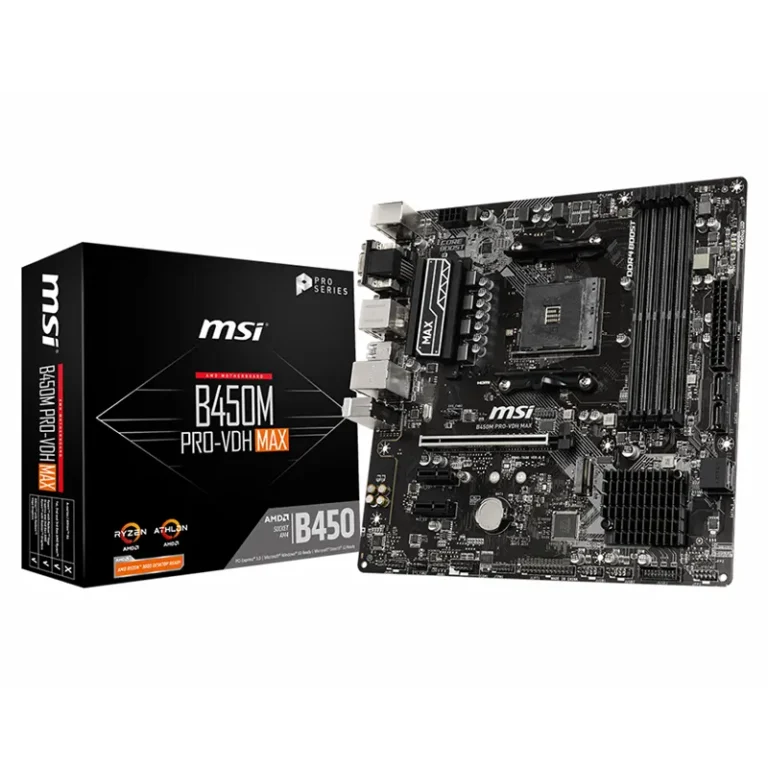

MSI B450M Pro-VDH Max Motherboard

,

Out of stock

Read more
Weight 2.5 kg
Dimensions 18 × 18 × 10 cm
Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset

AMD B450
Memory

4 x DDR4 memory slots, support up to 128GB
*ComboPI 1.0.0.3-based and above BIOS are required.
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
For AMD Other Processors
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Expansion Slots

1 x PCIe 3.0 x16 slot
1st, 2nd and 3rd Gen AMD
Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots
Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz
Storage

AMD® B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
USB

AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio

Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN

1 x Realtek® 8111H Gigabit LAN controller
Internal I/O Headers

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper
Back Panel Ports

PS/2
VGA Port
USB 2.0 Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port
Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Form factor

Micro ATX
Warranty

3 Years
-22%
Quick view

ASRock B550M-HDV Motherboard

,

Out of stock

Read more
Weight 1.5 kg
Dimensions 18 × 18 × 10 cm
Unique Feature

ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

– Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
– 6 Power Phase design
*Not compatible with AMD Athlon™ Processors.
Chipset

AMD B550
Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Picasso) support DDR4 3533+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots*
*For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support
– Supports "Plug and Play"
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics

– Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports***
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
– Supports Microsoft® PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio

– 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
– Supports Surge Protection
LAN

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots

AMD Ryzen series CPUs (Vermeer and Matisse)
– 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Cezanne and Renoir)
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Picasso)
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
– 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage

– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Connector

– 1 x SPI TPM Header
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O

– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN UEFI
– ASRock Full HD
UEFI
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD

– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories

– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitor

– Temperature Sensing: CPU, Chassis Fans
– Fan Tachometer: CPU, Chassis Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
– Fan Multi-Speed Control: CPU, Chassis Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System

– Microsoft® Windows® 10 64-bit / 11 64-bit
Form factor

Micro ATX
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty

3 Years
