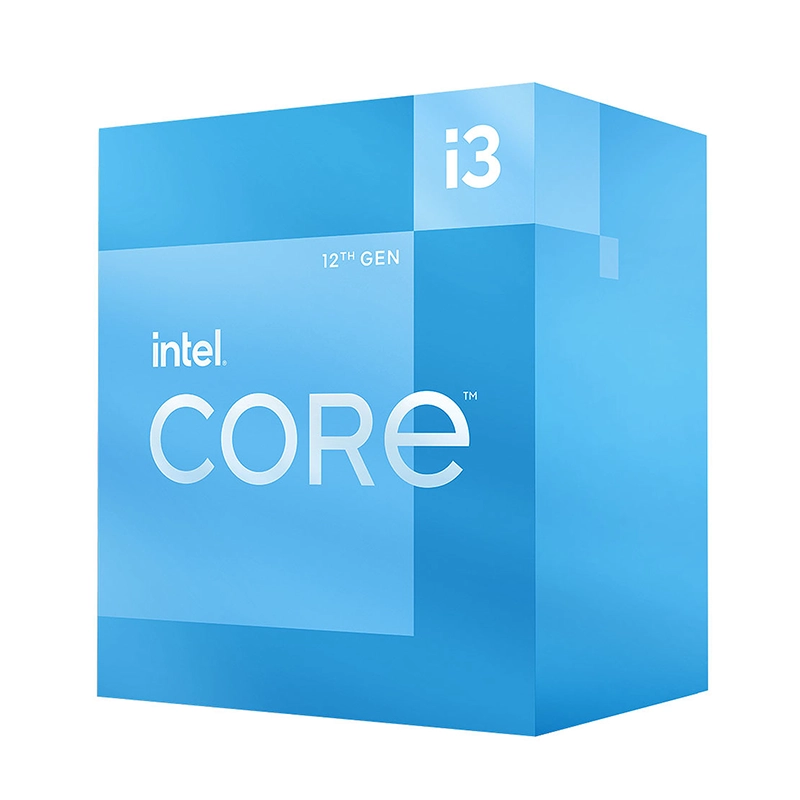

Intel Core i3-12100 Desktop Processor With Graphics

Brands:
SKU: CORE-I3-12100-BOX Categories: , , Tag:

9,975.00

Availability: Out of Stock

Out of stock

SKU: CORE-I3-12100-BOX Categories: , , Tag:

Description

  • Intel® Core® i3 3.30 GHz processor uses less power and the hyper-threading architecture delivers high performance for demanding applications at an affordable price
  • 12 MB of L3 cache rapidly retrieves the most used data available to improve system performance
  • Built-in Intel UHD Graphics 730 controller for improved graphics and visual quality. Supports up to 4 monitors.

Additional information

Essentials

Product Collection : 12th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i3-12100
Lithography: Intel 7

CPU Specifications

Total Cores : 4
# of Performance-cores : 4
# of Efficient-cores : 0
Total Threads : 8
Max Turbo Frequency :4.30 GHz
Performance-core Max Turbo Frequency : 4.30 GHz
Performance-core Base Frequency : 3.30 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power : 60 W
Maximum Turbo Power : 89 W

Memory Specifications

Max Memory Size (dependent on memory type) :128 GB
Memory Types : Up to DDR5 4800 MT/s ,
Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

Expansion Options

Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes : 8
Scalability :1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes : 20

Graphics Specification

Intel® UHD Graphics 730
Graphics Base Frequenc : 300 MHz
Graphics Max Dynamic Frequency : 1.40 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) :7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video :Yes
Intel® Clear Video HD Technology :Yes
# of Displays Supported : 4

Package Specifications

Sockets Supported : FCLGA1700
Max CPU Configuration :1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm

Warranty

3 Years
