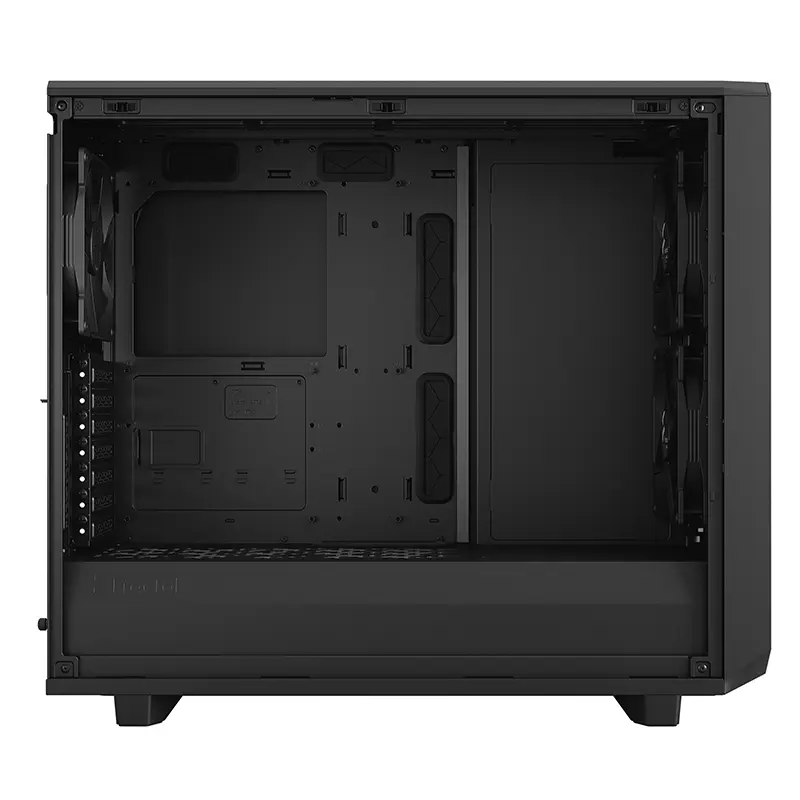

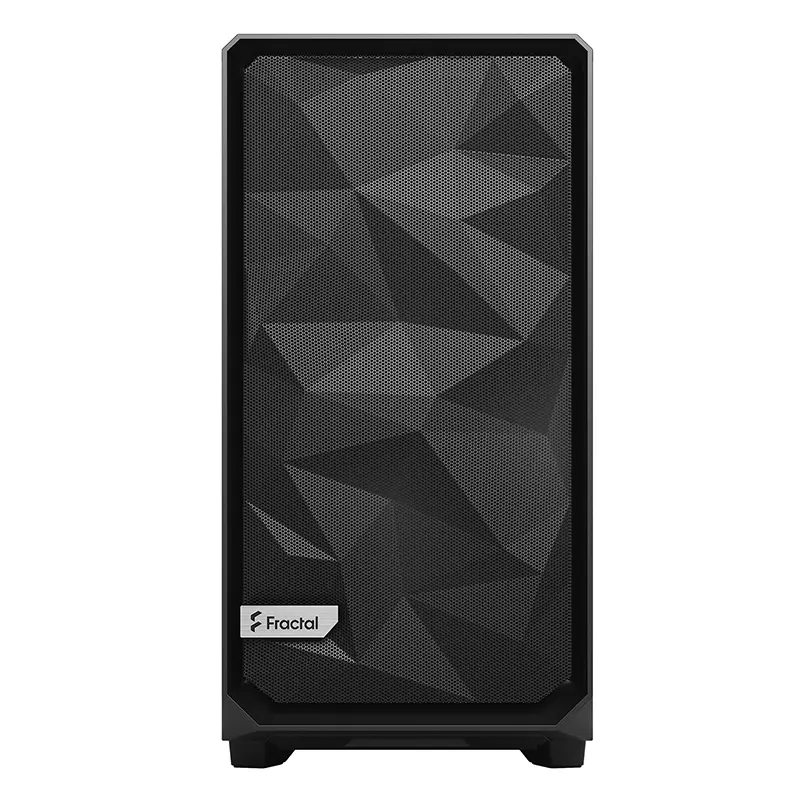

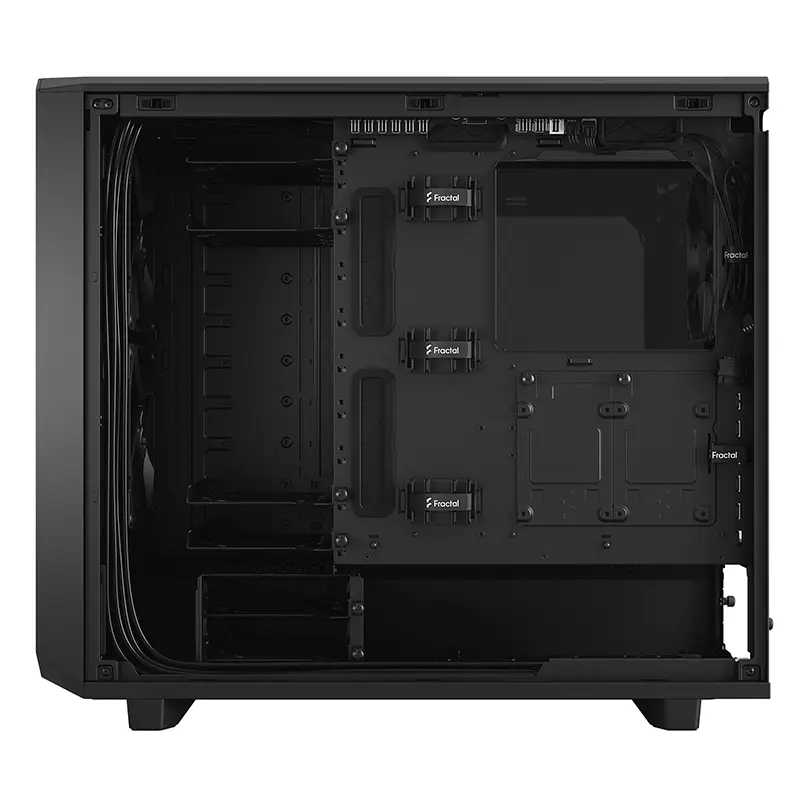

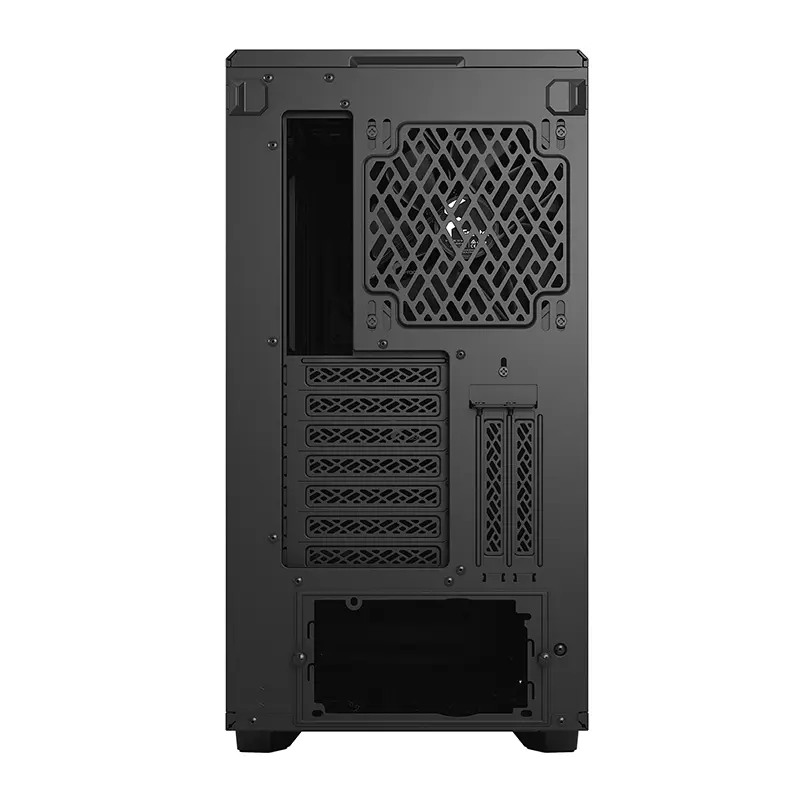

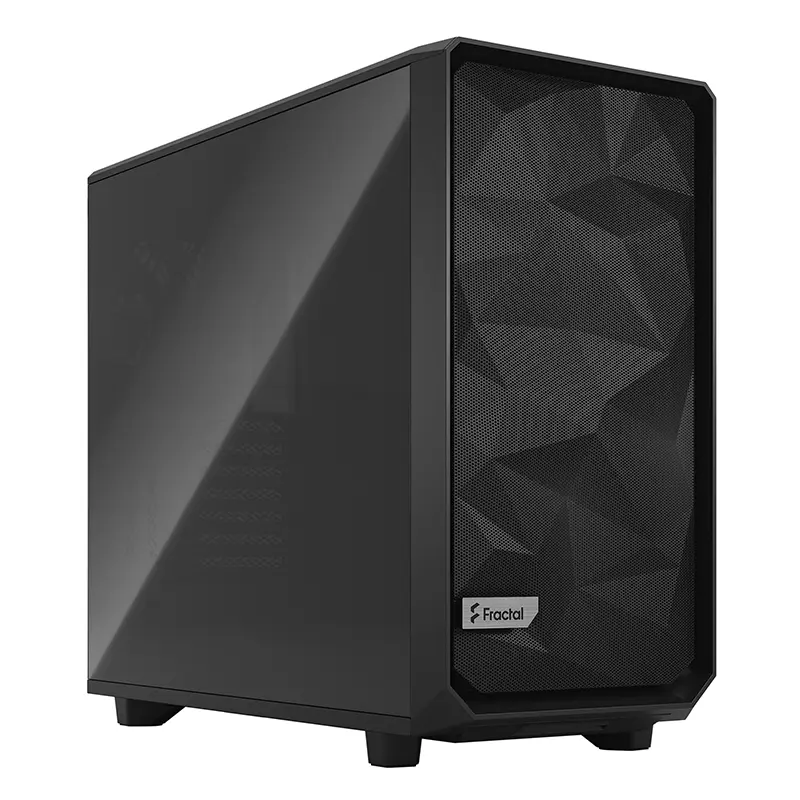

Fractal Design Meshify 2 TG Dark Tint Mid Tower Case (Black)

SKU: FD-C-MES2A-02 Category:

15,650.00

Availability: Out of Stock

Out of stock

SKU: FD-C-MES2A-02 Category:

Description

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

• Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
• Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)

Detachable front filter

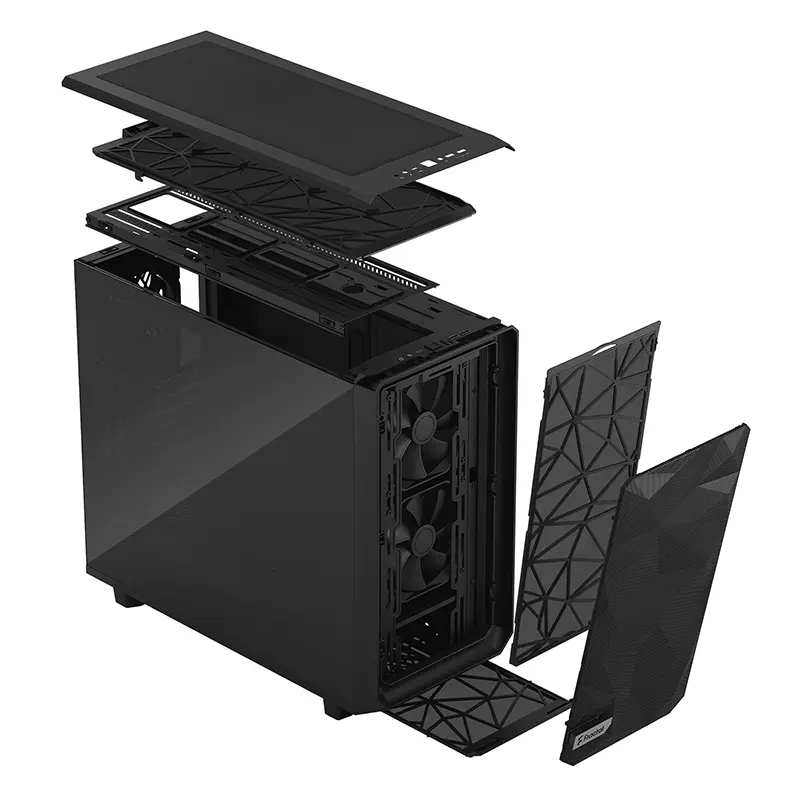

  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
  • New front nylon filter that can be removed for increased airflow

Superlative storage

  • Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included
  • Transformable interior design utilizing a movable wall for enhancing custom builds
  • The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible

  • Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
  • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
  • Easily holds large motherboards up to and including 285 mm E-ATX
  • Remove the entire top to build and route with zero hindrance





Additional information

Case Type

Dimensions

542 x 240 x 474 mm
541 x 240 x 454 mm (w/o feet/protrusions/screws)

Net Weight

10.5 kg

Motherboard Support

E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

Expansion Slots

7+2

Drive Bays

3.5"/2.5" Universal drive mounts: 6 included, 14 positions total + 1 Multibracket
Dedicated 2.5" drive mounts: 2 included, 4 positions total

Included Fans

Front Fan : 2x Dynamic X2 GP-14
Rear Fan : 1x Dynamic X2 GP-14

Fan Support

Total fan mounts : 9x 120/140 mm
Front Fan :3x 120/140 mm
Top fan : 3x 120/140 mm
Rear fan : 1x 120/140 mm
Bottom fan : 2x 120/140 mm

Radiator Support

Front radiator: Up to 360/280 mm
Top Radiator : Up to 360/420 mm
Bottom radiator: Up to 240/280 mm
Rear radiator: 120mm

Clearance

PSU max length: 250 mm (with HDD cage installed)
GPU max length: Open layout: 476 mm (451 mm w/ front fan) – Storage layout: 298 mm
CPU cooler max height: 185 mm
Cable routing space: 30 mm

Dust Filters

Top, Front, Bottom

Cable routing grommets

Yes

Fixed velcro straps

Yes

Captive thumbscrews

HDD, SSD and PSU brackets

Side Panels

Left : Tempered glass
Right : Steel

Package Contents

Meshify 2 Case, User manual, Large accessory box – HDD trays. Small accessory box

Warranty

2 Years
