Fractal Design Meshify 2 Compact TG Light Tint Mid Tower Case (Grey)

SKU: FD-C-MES2C-04 Category:

12,250.00

Availability: Out of Stock

Out of stock

SKU: FD-C-MES2C-04 Category:

Description

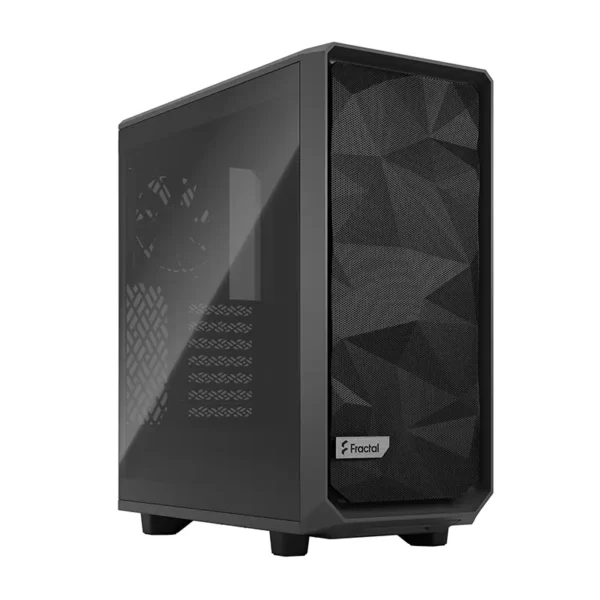

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

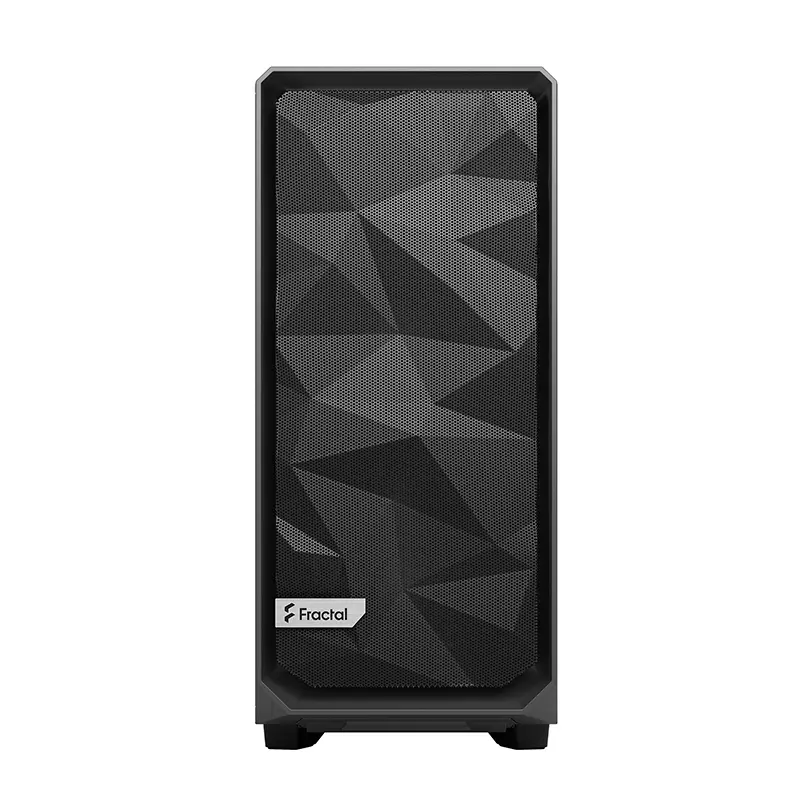

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

Removable front filter

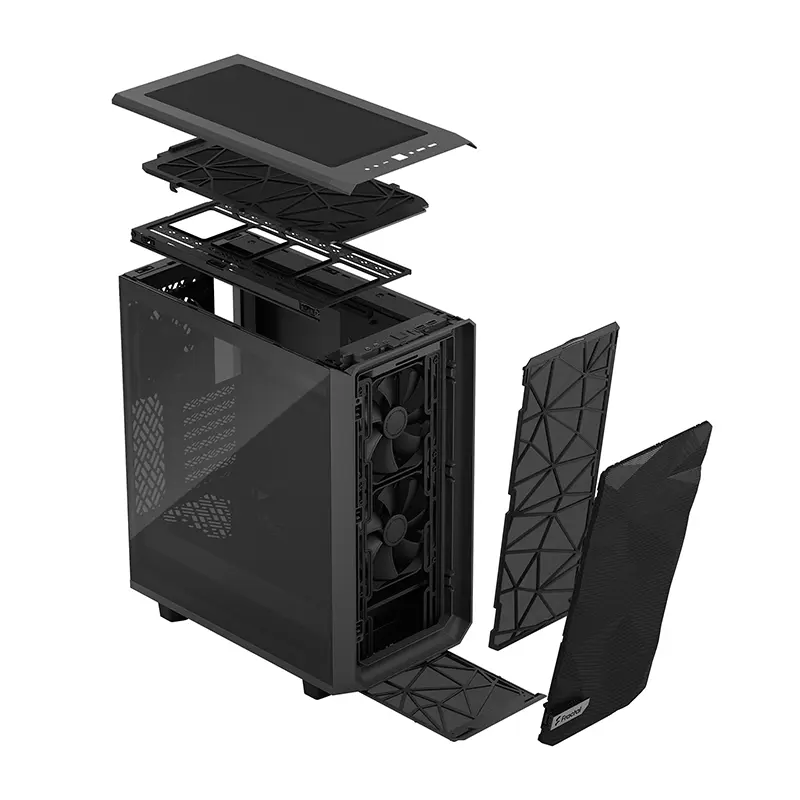

  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
  • New front nylon filter that can be removed for increased airflow

Robust cooling

  • Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
  • Open interior layout creates a smooth airflow path from intake to exhaust
  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

  • Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
  • Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)

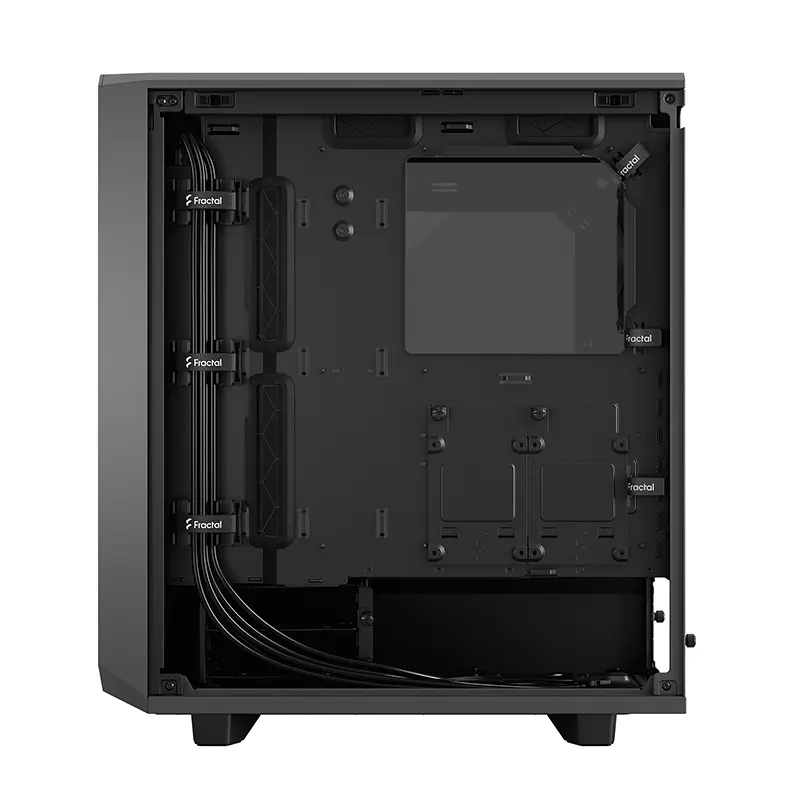

  • Improved cable routing with three integrated cable alignment clips and six velcro straps

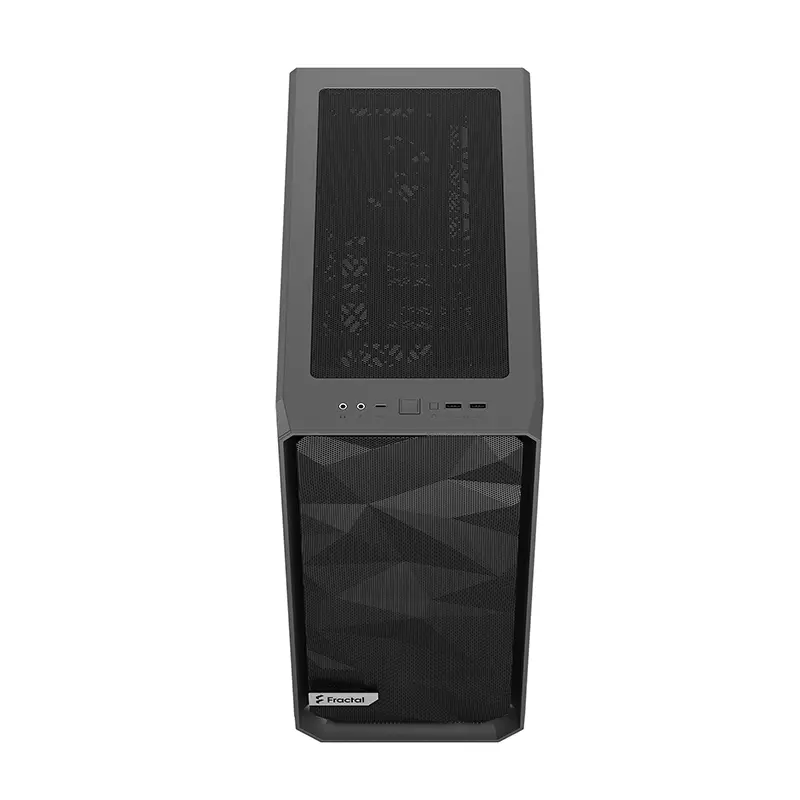

  • The fully removable top panel opens to provide excellent interior access

Additional information

Case Type

Dimensions

424 x 210 x 475 mm
412 x 210 x 455 mm (w/o feet/protrusions/screws)

Net Weight

8.1 kg

Motherboard Support

ATX / mATX / Mini-ITX

Front I/O Ports

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

Expansion Slots

7

Drive Bays

3.5"/2.5" Universal drive mounts: 2 (included)
Dedicated 2.5" drive mounts: 4 (2 included)

Included Fans

Front Fan : 2x Dynamic X2 GP-14
Rear Fan : 1x Dynamic X2 GP-12

Fan Support

Total fan mounts : 7x 120 or 4x 140 mm and 2x 120 mm
Front Fan : 3x 120 or 2x 140 mm
Top fan : 2x 120/140 mm
Rear fan : 1x 120 mm
Bottom fan : 1x 120 mm (requires removal of HDD cage)

Radiator Support

Front radiator: Up to 360/280 mm
Top Radiator : Up to 240 mm
Bottom radiator: 120 mm (requires removal of HDD cage)
Rear radiator: 120mm

Radiator Support – Additional Details

Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.

Clearance

PSU max length: 200 mm (165 mm with HDD cage and front fan)
GPU max length: 341 mm (360 mm without front fan)
CPU cooler max height: 169 mm
Cable routing space: 17-28 mm

Dust Filters

Top, Front, Bottom

Cable routing grommets

Yes

Fixed velcro straps

Yes

Captive thumbscrews

HDD, SSD and PSU brackets

Side Panels

Left : Tempered glass
Right : Steel

Package Contents

Meshify 2 Compact Case, User manual, Accessory box

Warranty

2 Years
