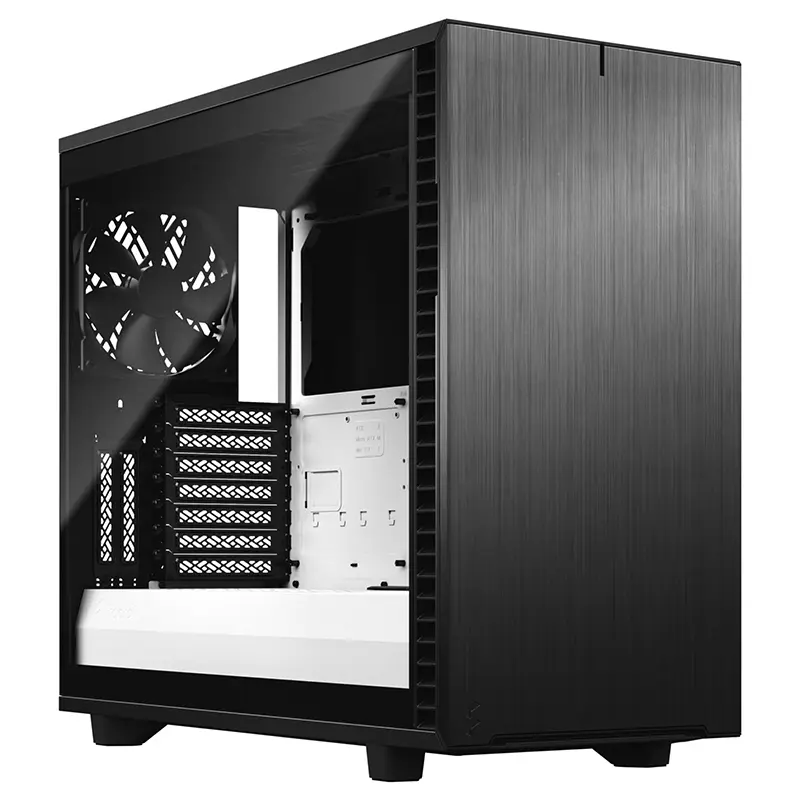

Fractal Design Define 7 TG Clear Mid Tower Case (Black/White)

SKU: FD-C-DEF7A-05 Category:

17,750.00

Availability: Out of Stock

Out of stock

SKU: FD-C-DEF7A-05 Category:

Description

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

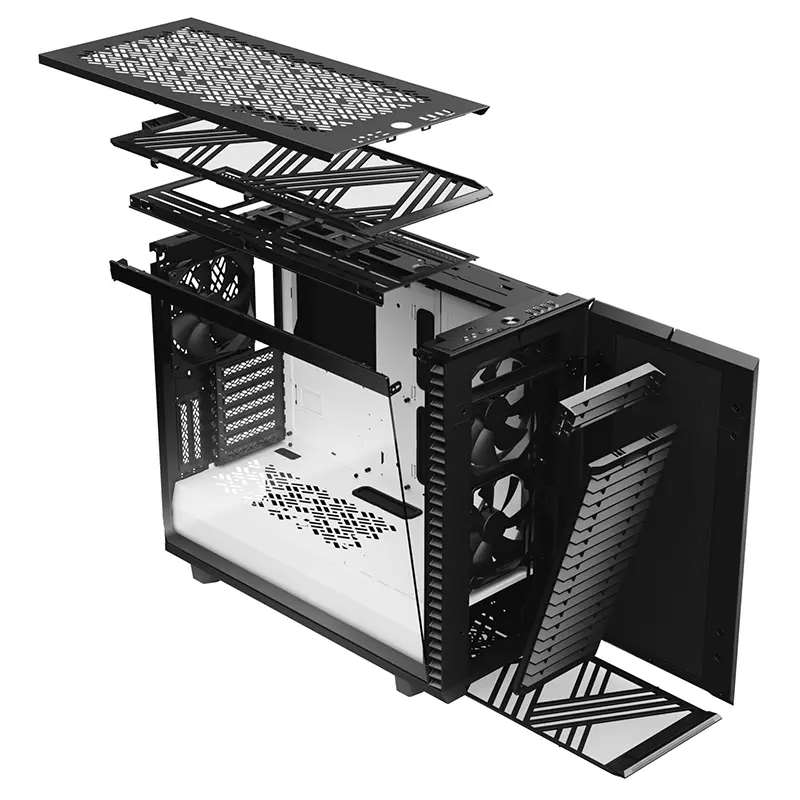

  • New chassis design opens up to fully expose the case interior

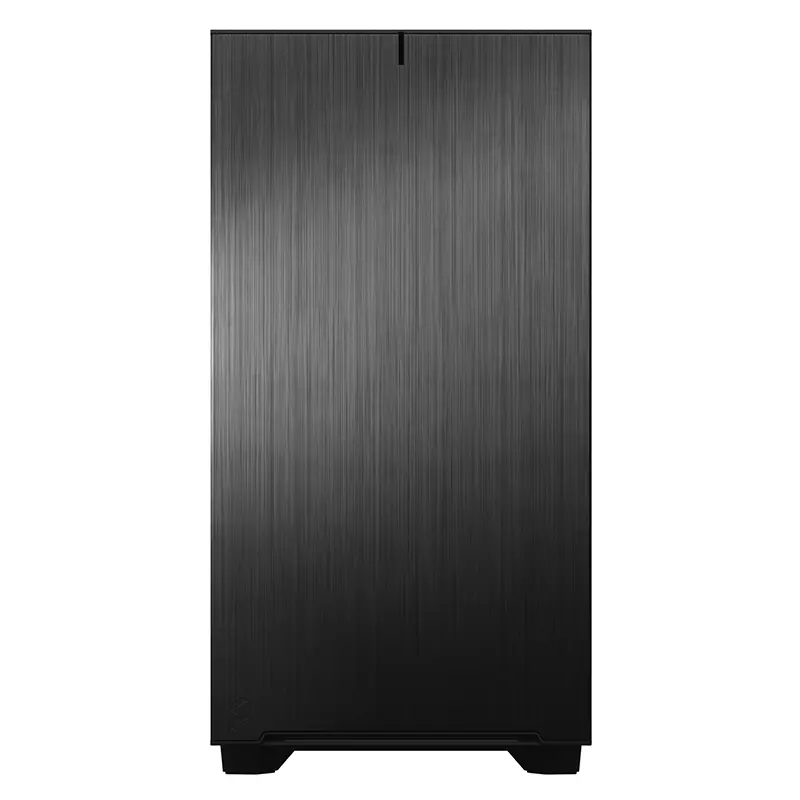

  • Anodized aluminum front panel with reversible dual-handed hinges
  • Multibracket converts unused fan positions to HDD, SSD or pump mounts

Superior airflow by design

  • Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

Superlative storage

  • Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
  • The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
  • Tool-less, top-latching panels allow quick access while preventing accidental drops

Open layout for massive headroom

You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

  • Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Superlative storage

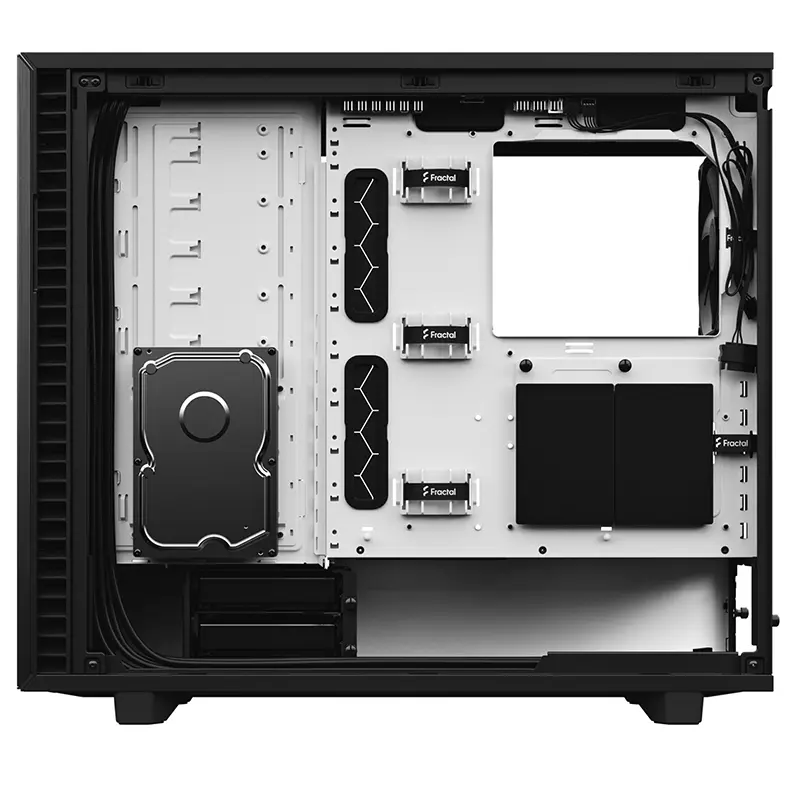

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

  • 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
  • 2 dedicated SSD brackets included with 4 positions total
  • Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
  • Sturdy new HDD cage design with vibration damped trays

Additional information

Case Type

Dimensions

547 x 240 x 475 mm
533 x 240 x 451 mm (w/o feet/protrusions/screws)

Net Weight

13.45 kg

Motherboard Support

E-ATX (max 285 mm) / ATX / mATX / mITX

Front I/O Ports

1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button

Expansion Slots

7+2

Drive Bays

5.25” drive mounts: 1
3.5"/2.5" Universal drive mounts: 6 included, 14 positions total
Dedicated 2.5" drive mounts: 2 trays included, 4 positions total

Included Fans

Front Fan : 2x Dynamic X2 GP-14
Rear Fan : 1x Dynamic X2 GP-14

Fan Support

Total fan mounts : 9 x 120/140 mm
Front Fan :3 x 120/140 mm
Top fan : 3 x 120/140 mm
Rear fan : 1x 120/140 mm
Bottom fan : 2x 120/140 mm

Radiator Support

Front radiator: Up to 360/280 mm
Top Radiator: Up to 360/420 mm
Bottom radiator: Up to 240/280 mm
Rear radiator: 120mm

Clearance

PSU max length: 250 mm (With HDD cage installed)
GPU max length: Storage layout: 290 mm – Open layout: 470 mm (445 mm w/ front fan)
CPU cooler max height: 185 mm
Cable routing space: 30 mm

Vertical GPU Support (with Flex B-20 or Flex VRC-25)

65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dust Filters

Top, 2 x front, full length bottom

Cable routing grommets

Yes

Fixed velcro straps

Yes

Captive thumbscrews

HDD, SSD and PSU brackets

Side Panels

Left : Tempered glass
Right : Industrial sound-damped steel

Package Contents

Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)

Warranty

2 Years
