Deepcool PN850M ATX3.1 Gold Power Supply

SKU: R-PN850M-FC0B-IN Brand:

Out of stock

Out of stock

0 People watching this product now!

Payment Methods:

Description

FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

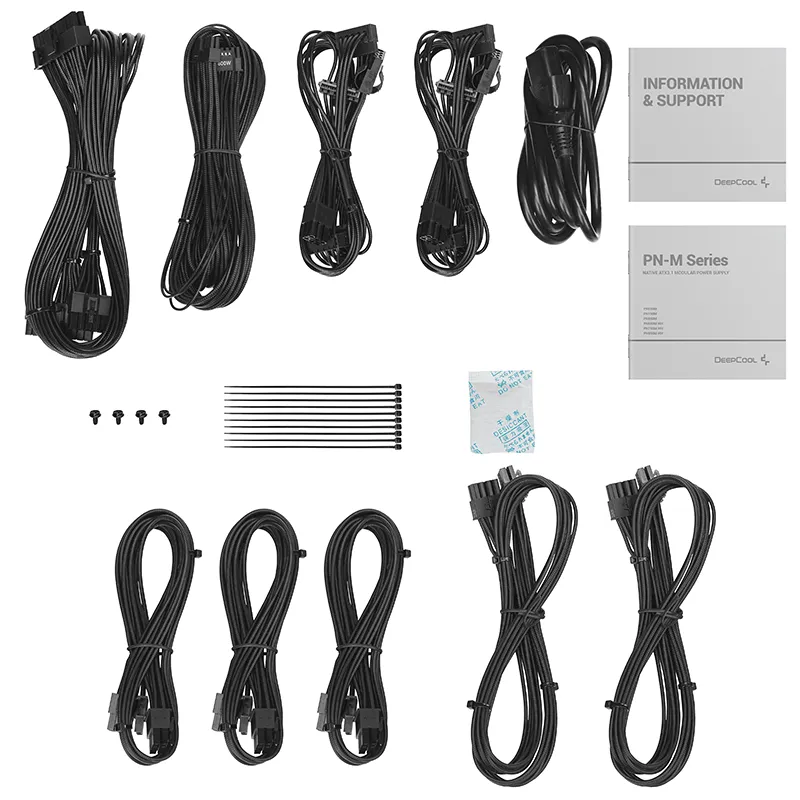

SLEEVED CABLES

The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

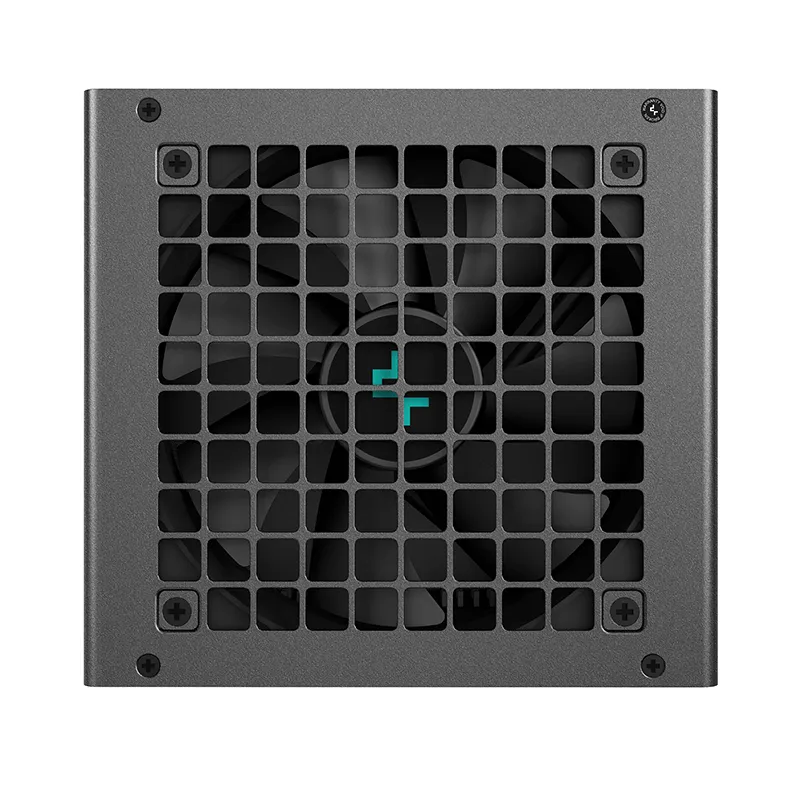

DYNAMIC FDB FAN

The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD

Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND

The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Specifications

Weight 3 kg
Dimensions 15 × 10 × 10 cm
ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC + Full Bridge SRC LLC + DC to DC

Dimensions

140 x 150 x 86 mm

Total wattage

850 Watt

Cable type

Fully Modular

Fan

Fan Size : 120mm
Fan Bearing : FDB (Fluid Dynamic Bearing)

Efficiency

≥90% Under Typical Load(50% Loading)

80 plus rating

Gold

Power Good Signal

100 – 150 ms

Hold Up Time

≥16ms(80% Load)

MTBF

100,000 Hours

Protections

OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Regulatory

CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH

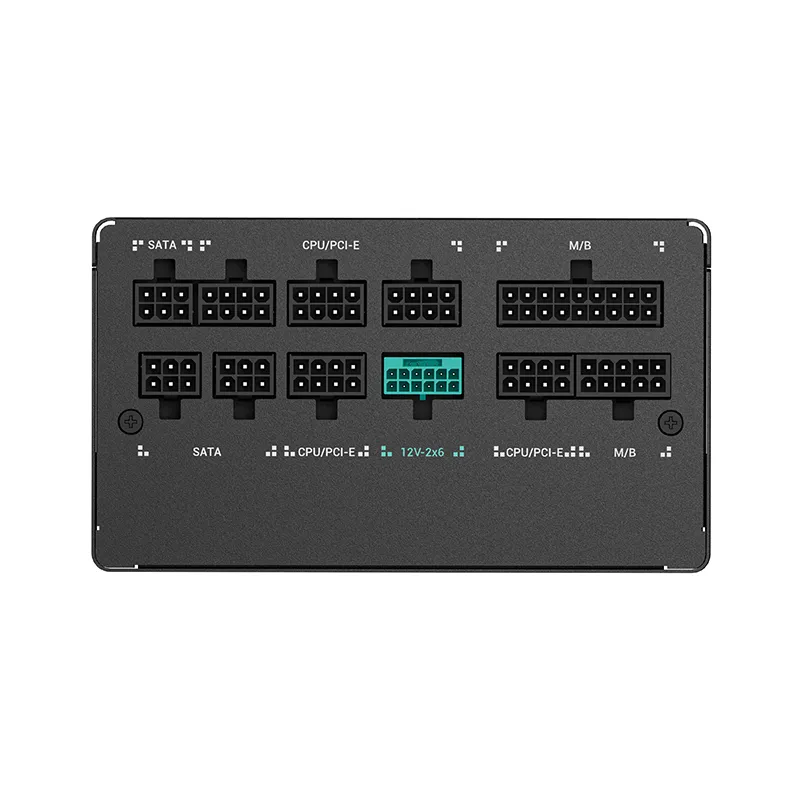

Power Connectors

ATX 24 Pin x1 Cable : 1 (550mm)
EPS 8 Pin / 4+4 Pin x1 Cable : 2 (700mm)
PCI-e 6+2 Pin x1 Cable : 3 (550mm)
12VHPWR-2×6 16 Pin x1 Cable : 1 (600mm)
SATA x4 + 4 Pin Peripheral x1 Cable : 2 (450+120+120+120+120mm)

Warranty

10 Years
