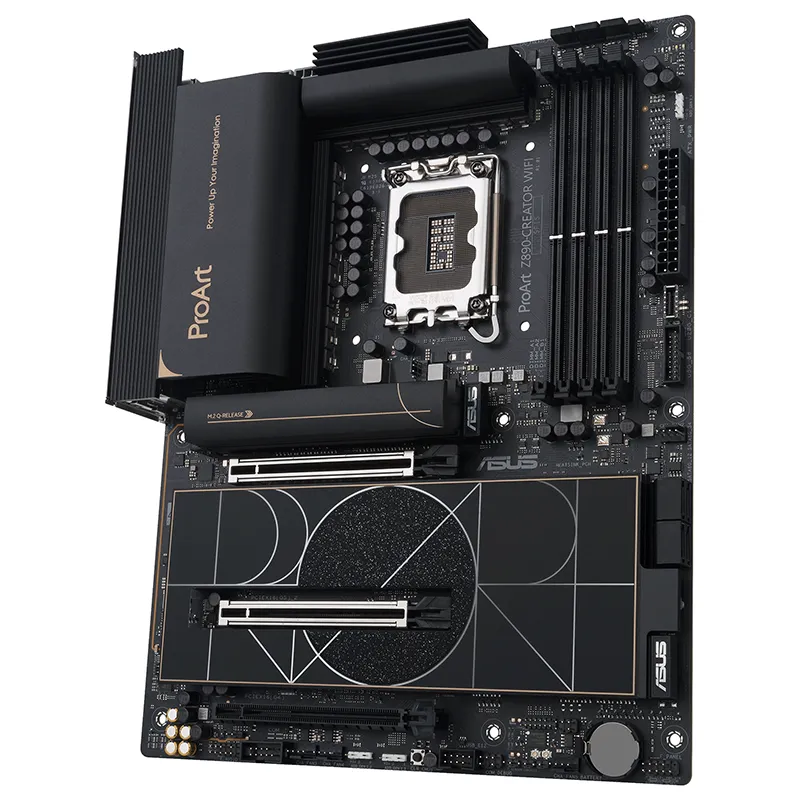

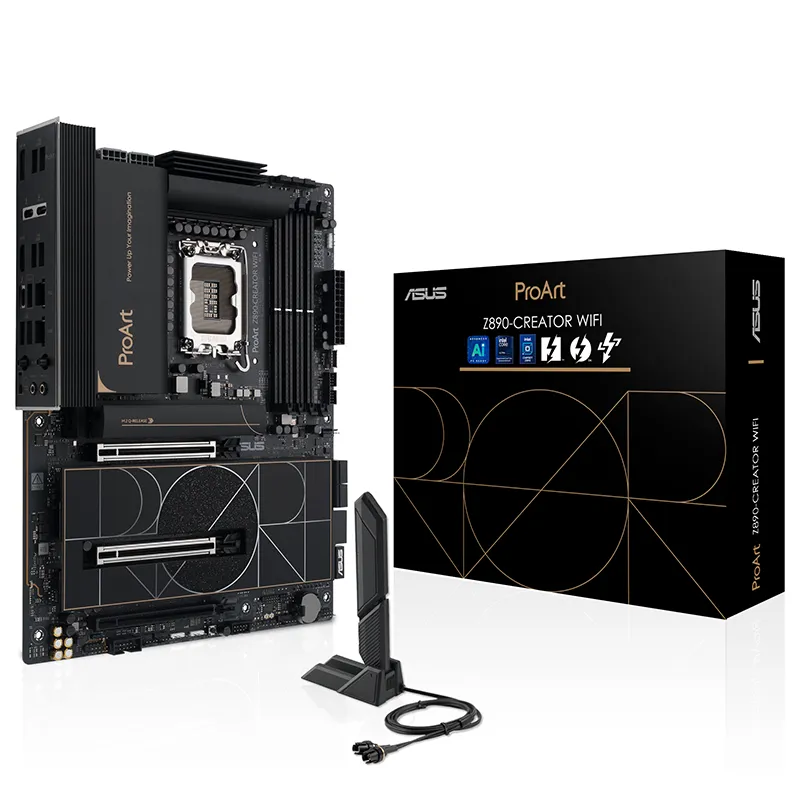

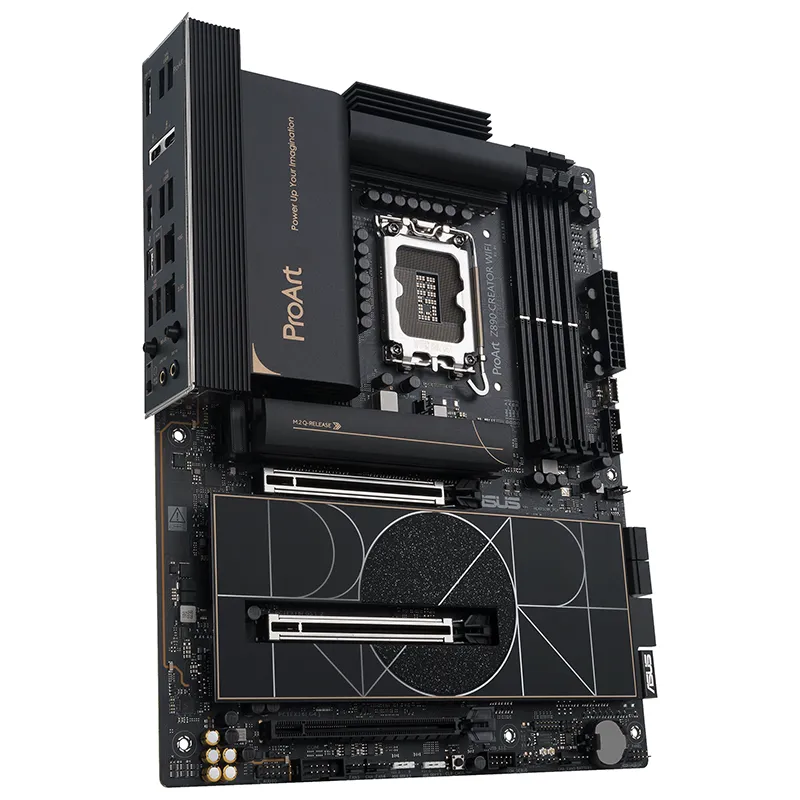

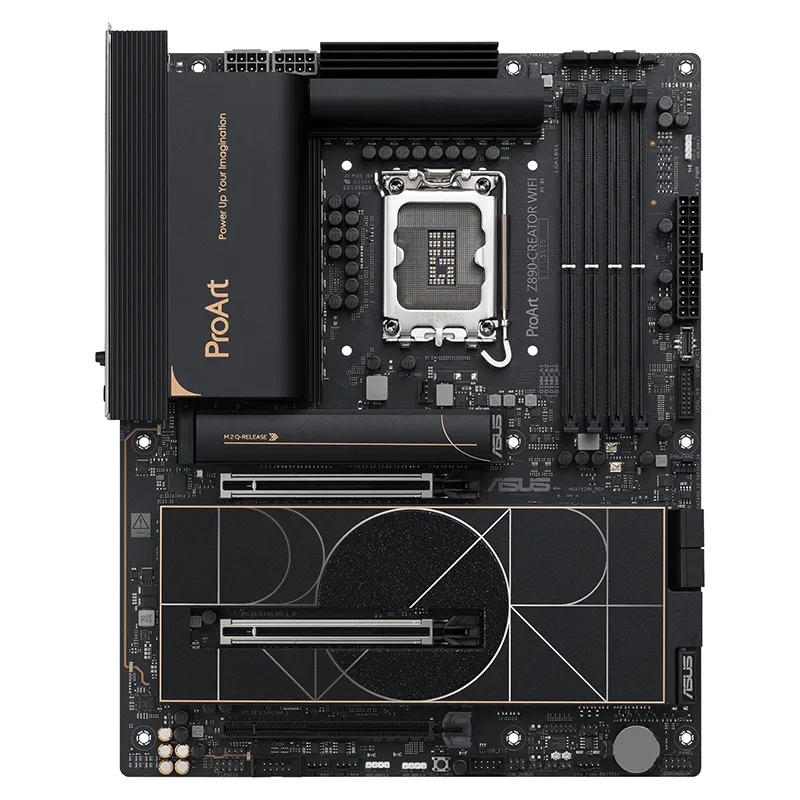

ASUS ProArt Z890-Creator WiFi Motherboard - Image 1
ASUS ProArt Z890-Creator WiFi Motherboard - Image 2
ASUS ProArt Z890-Creator WiFi Motherboard - Image 3
ASUS ProArt Z890-Creator WiFi Motherboard - Image 4
ASUS ProArt Z890-Creator WiFi Motherboard - Image 5
Click to enlarge
ASUS ProArt Z890-Creator WiFi Motherboard
ASUS ProArt Z890-Creator WiFi Motherboard - Image 2
ASUS ProArt Z890-Creator WiFi Motherboard - Image 3
ASUS ProArt Z890-Creator WiFi Motherboard - Image 4
ASUS ProArt Z890-Creator WiFi Motherboard - Image 5

ASUS ProArt Z890-Creator WiFi Motherboard

SKU: PROART-Z890-CREATOR-WIFI Brand:

Out of stock

Out of stock

Compare
0 People watching this product now!

Payment Methods:

Description

Intel Z890 LGA1851 ATX content creation motherboard with PCIe® 5.0, DDR5 slots, two USB4® ports, 10G and 2.5G Ethernet, WiFi 7, five M.2 slots, plus a USB 20Gpbs front-panel header
  • Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel LGA1851 socket:  Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
  • Robust performance: 16+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
  • Future-proofed connectivity: Two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port, 10G and 2.5G Ethernet ports, WiFi 7, two PCIe® 5.0 slots with support for next-gen graphics cards, and one PCIe 5.0 M.2 slot, four PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
  • Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Networking II, AI Advisor and NPU boost
  • DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, Q-Connector
  • ProArt gives you more: ProArt Creator Hub with the Color Management feature works in conjunction with Pantone’s proprietary utilities for one-stop system control and creation-related settings
  • Advanced security:  ASUS Control Center Express offers USB port management, software blacklisting and Regedit on/off controls

ProArt Z890-Creator WiFi

The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

Thunderbolt™ Connectivity

Get immersed in your creations with two Thunderbolt™ 5 and one USB4 / Thunderbolt™ ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Wireless Signal Reception Improvement
Versus previous-generation antenna

Seamless Dual-PC Sharing with Thunderbolt™ Share

Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.

NPU Boost

The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%*.

Memory

The ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

Trusted Stability

ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Specifications

Weight4 kg
Dimensions18 × 18 × 10 cm
ProcessorSupport Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z890
Memory4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Support DIMM Fit Support DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics1 x HDMI™ port** 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.When the ThunderboltTM 5 port is used to output two displays via integrated graphics, the Thunderbolt 4 port on the motherboard will not be able to output any display. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion SlotsIntel® Core™ Ultra Processors (Series 2) * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
StorageTotal supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
LAN1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & BluetoothWi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USBRear USB (Total 10 ports) 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) 1 x USB4 / Thunderbolt™ port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 5 ports) 1 x USB 20Gbps (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
AudioRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*Audio Features – Gold-plated audio jacks – Premium audio capacitors – Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

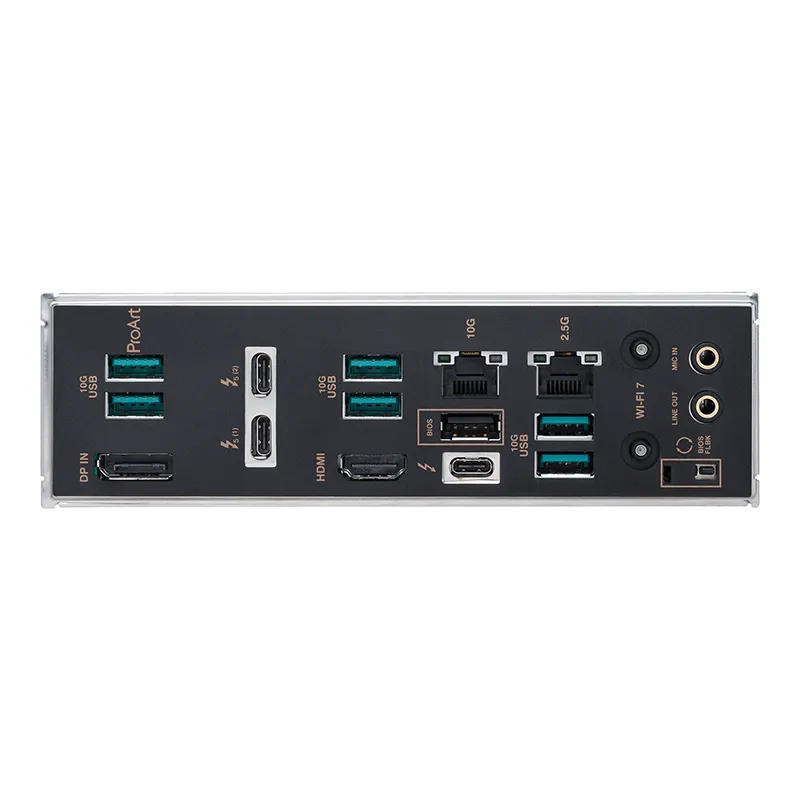

Back Panel Ports2 x Thunderbolt™ 5 USB Type-C® ports 1 x USB4 / Thunderbolt™ Type-C®port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button
Internal I/O HeadersFan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Software FeaturesASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreatonFirst ProArt Creator Hub TurboV Core Thunderbolt™ Share USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost ASUS 5X PROTECTION III / – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Connector – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box headers – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen2 headers Bespoke Motherboard Design & Business Focused Features – 24/7 reliability- Overcurrent protection
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Operating SystemWindows 11 (22H2 & later)
ManageabilityWOL by PME, PXE
Form factorATX
Warranty3 Years
